MHR Mille and S2 Mille - Parts Manual

MHR 1000 and S2 1000 - Parts Manual Index

ducatimeccanica.com - home

Front Cover Back cover
Topic	Exploded Diagrams	Part Numbers

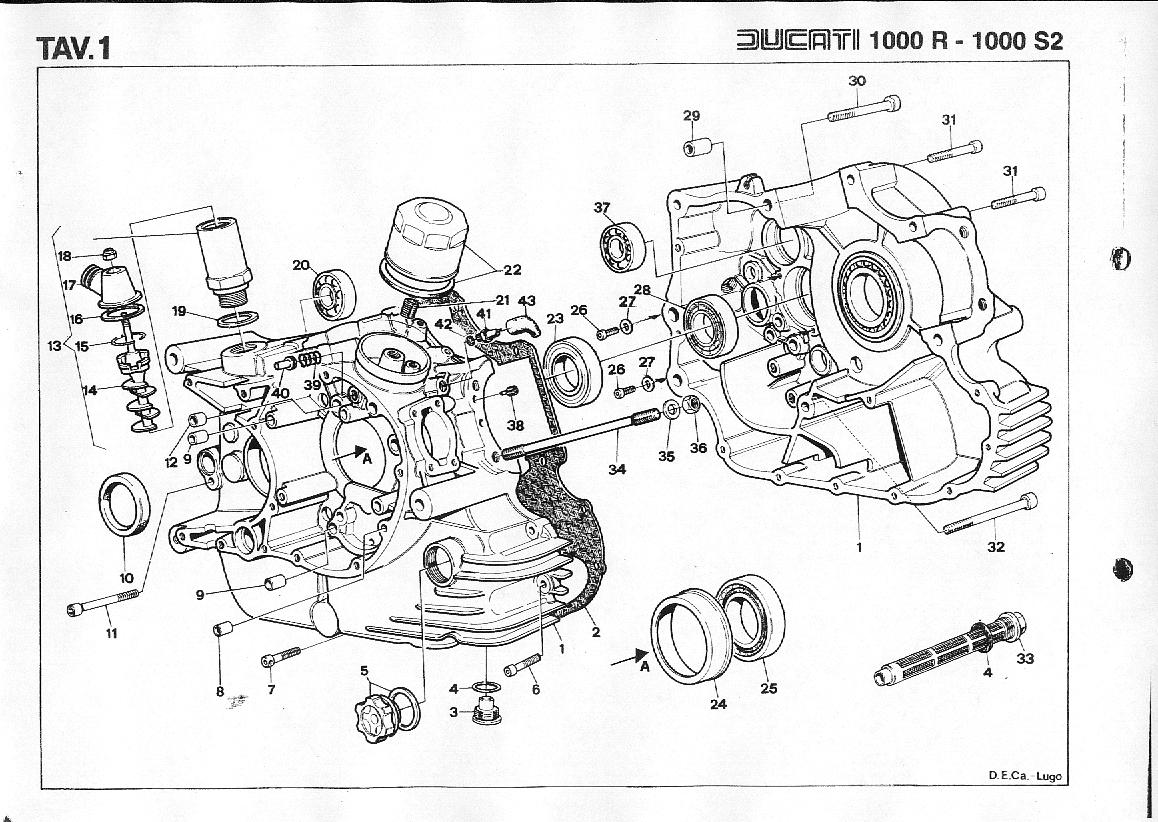

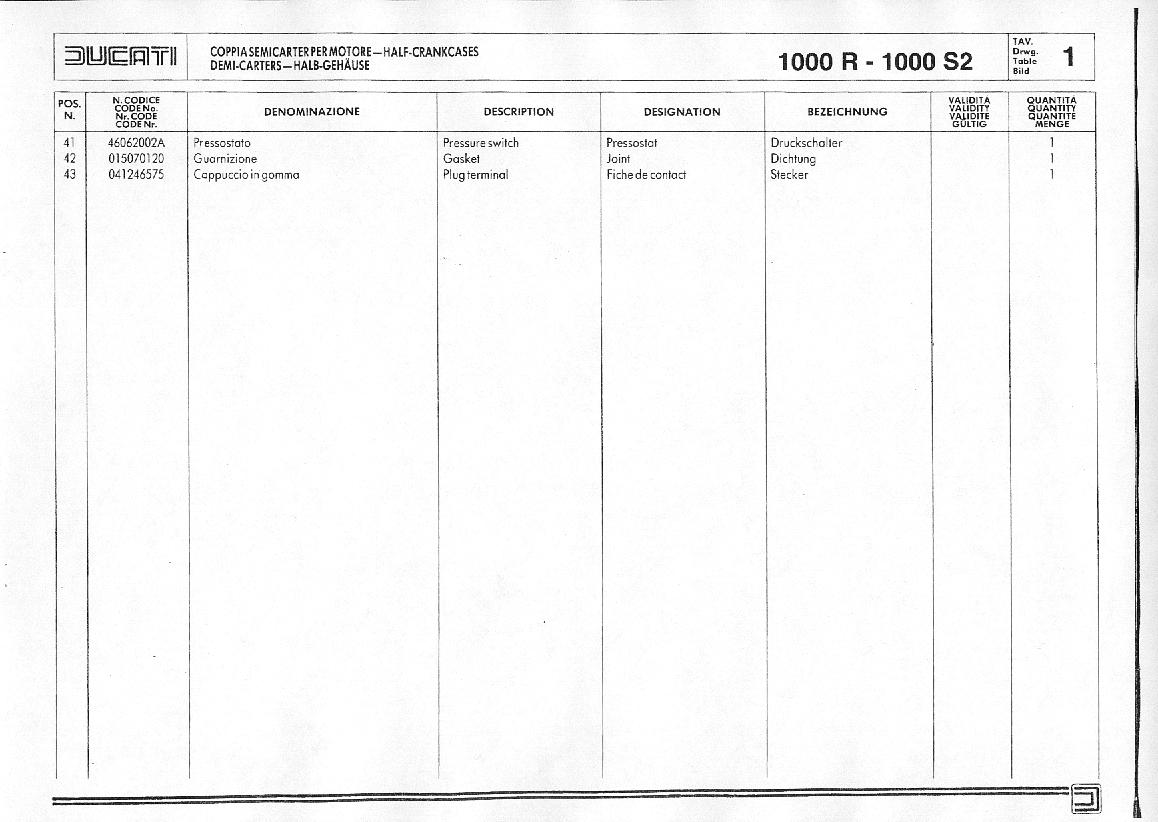

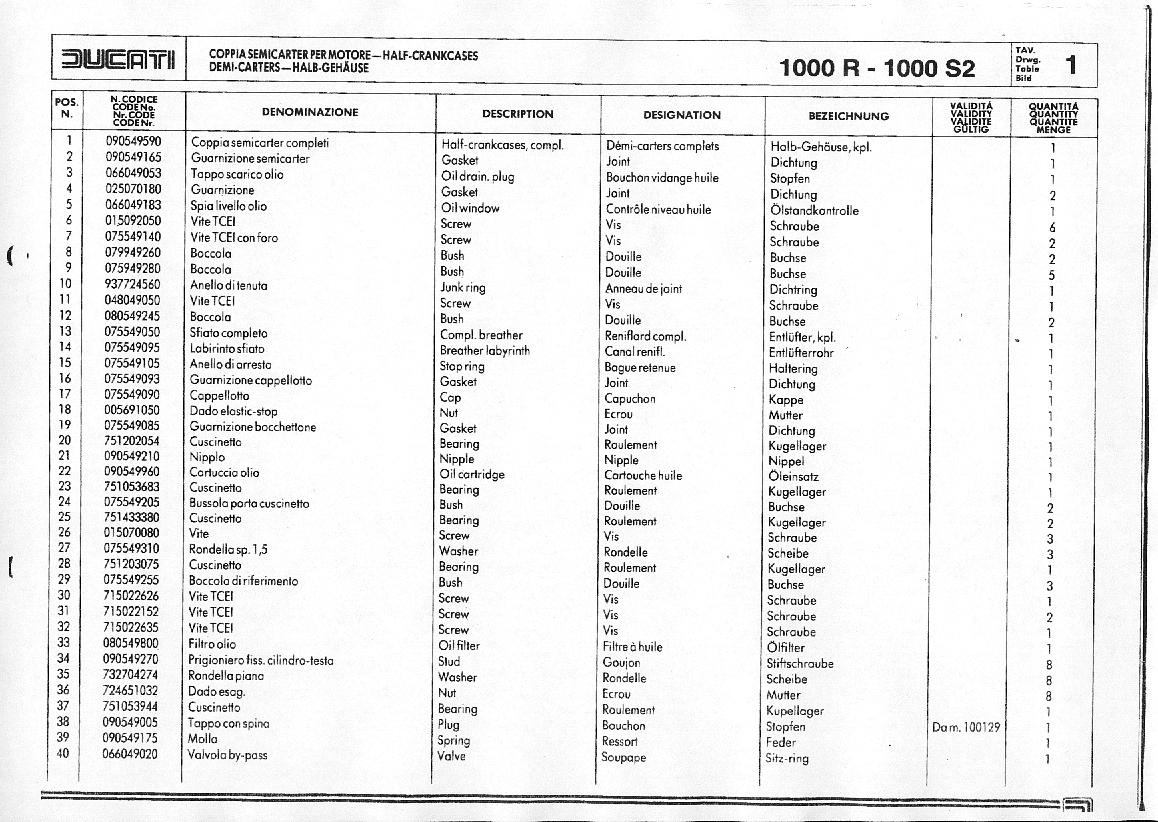

Crankcase	crankcase halves	Part Numbers 1-40 Part Numbers 41-43

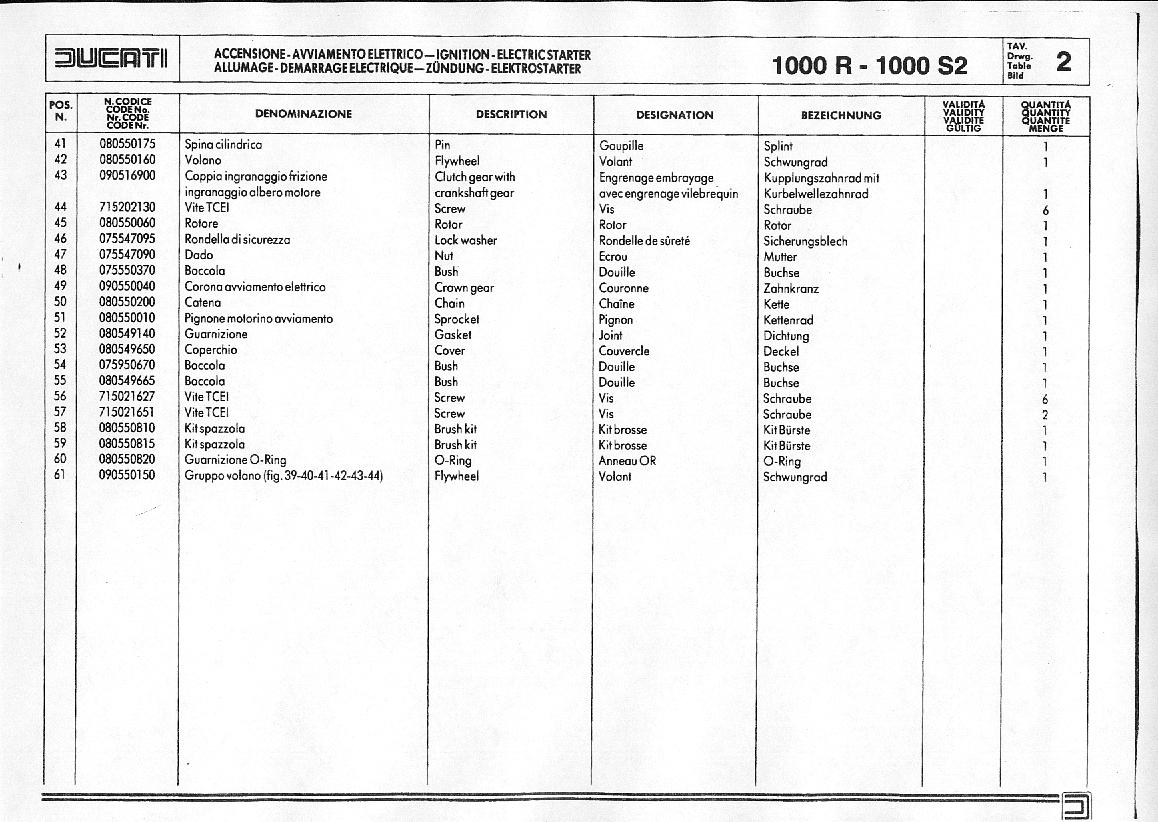

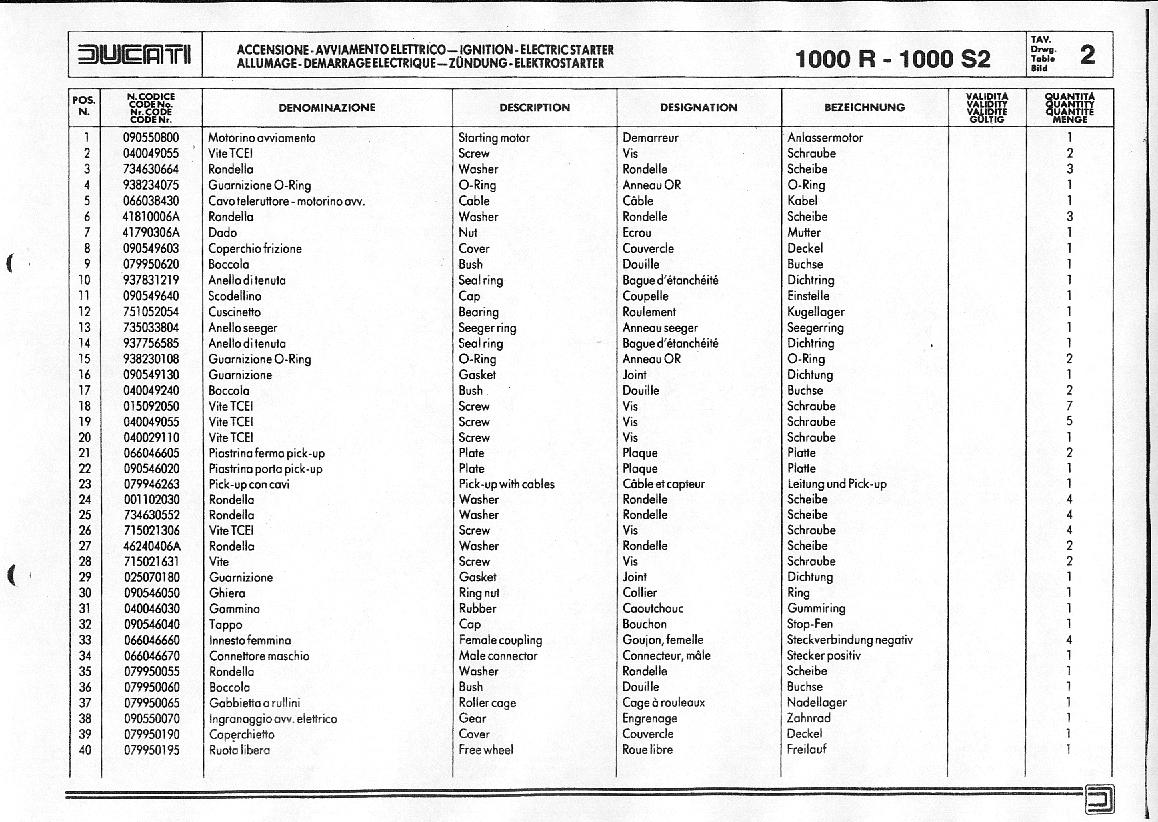

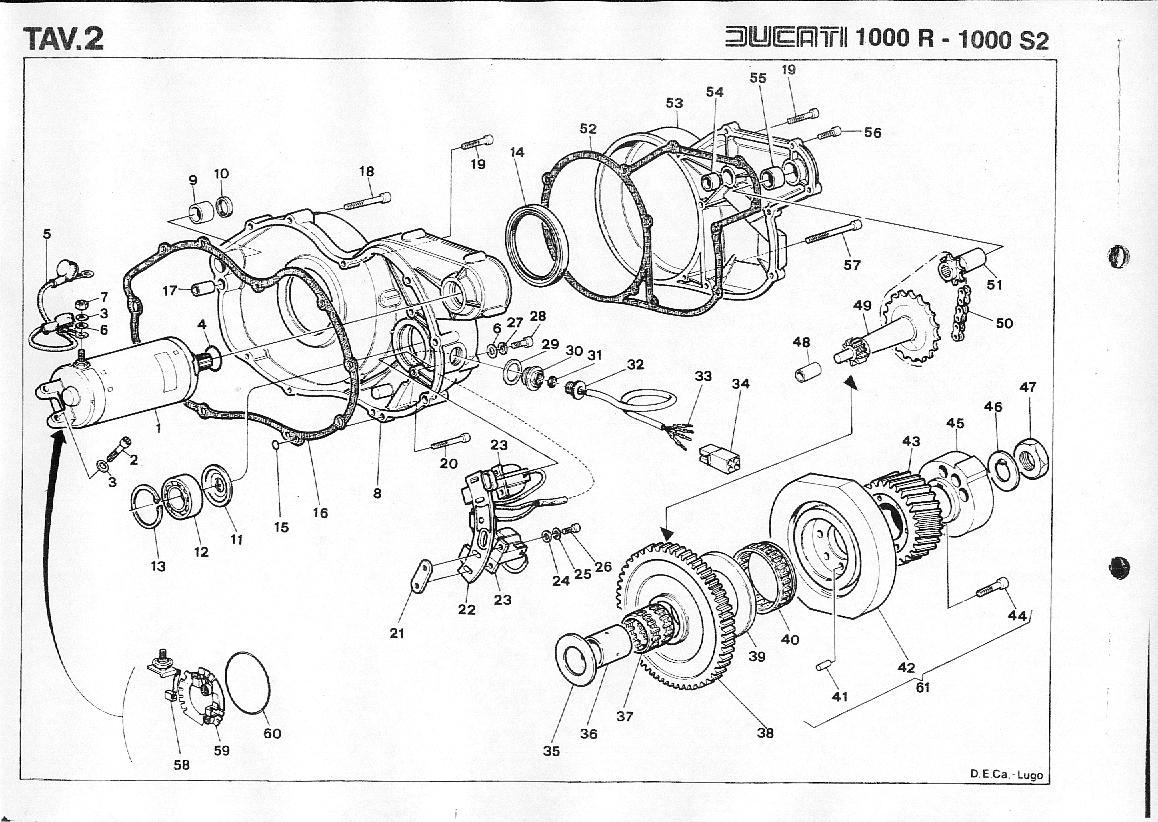

Starting	Ignition - Electric Starter	Part Numbers 1-40 Part Numbers 40-61

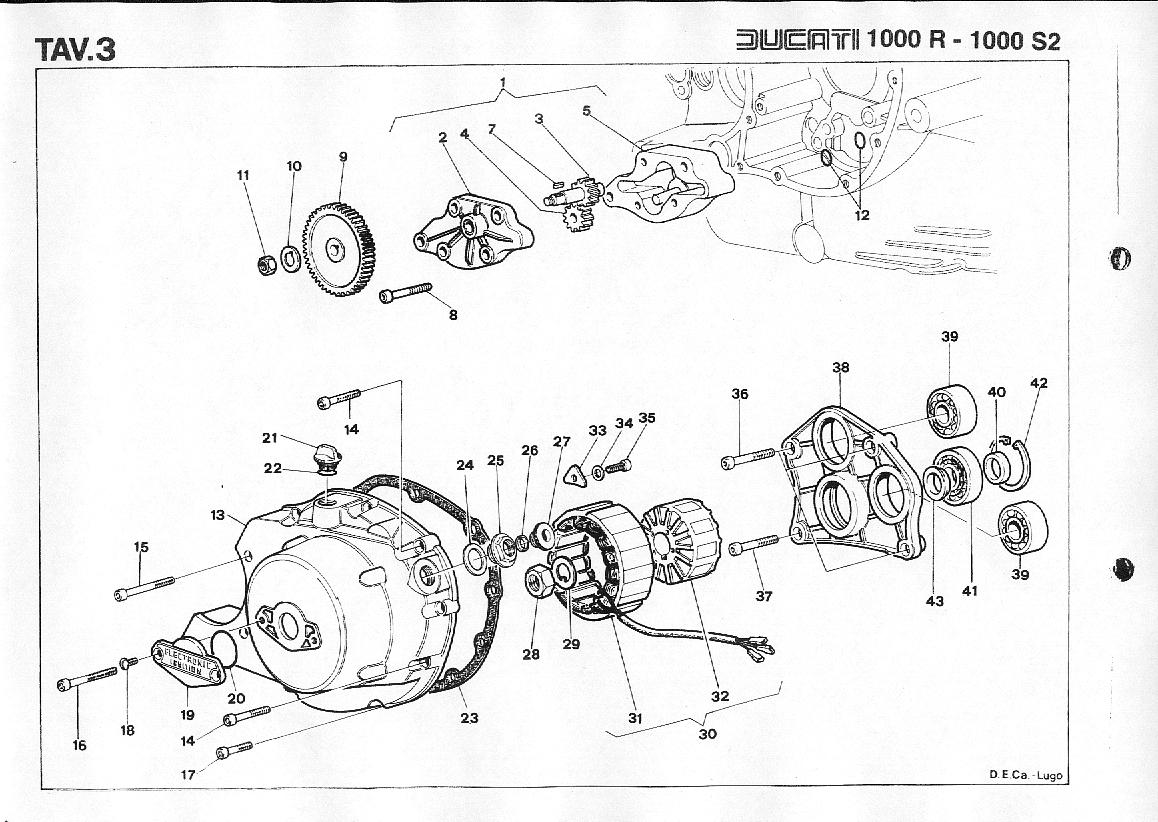

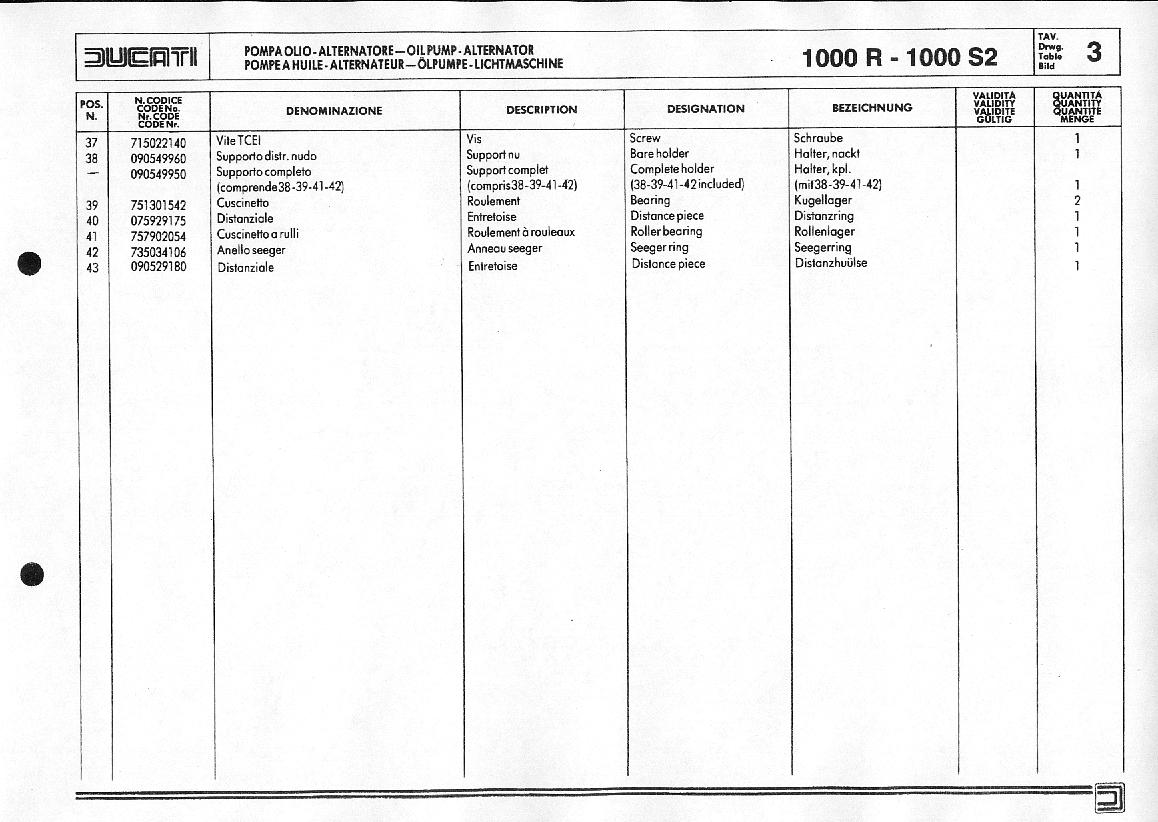

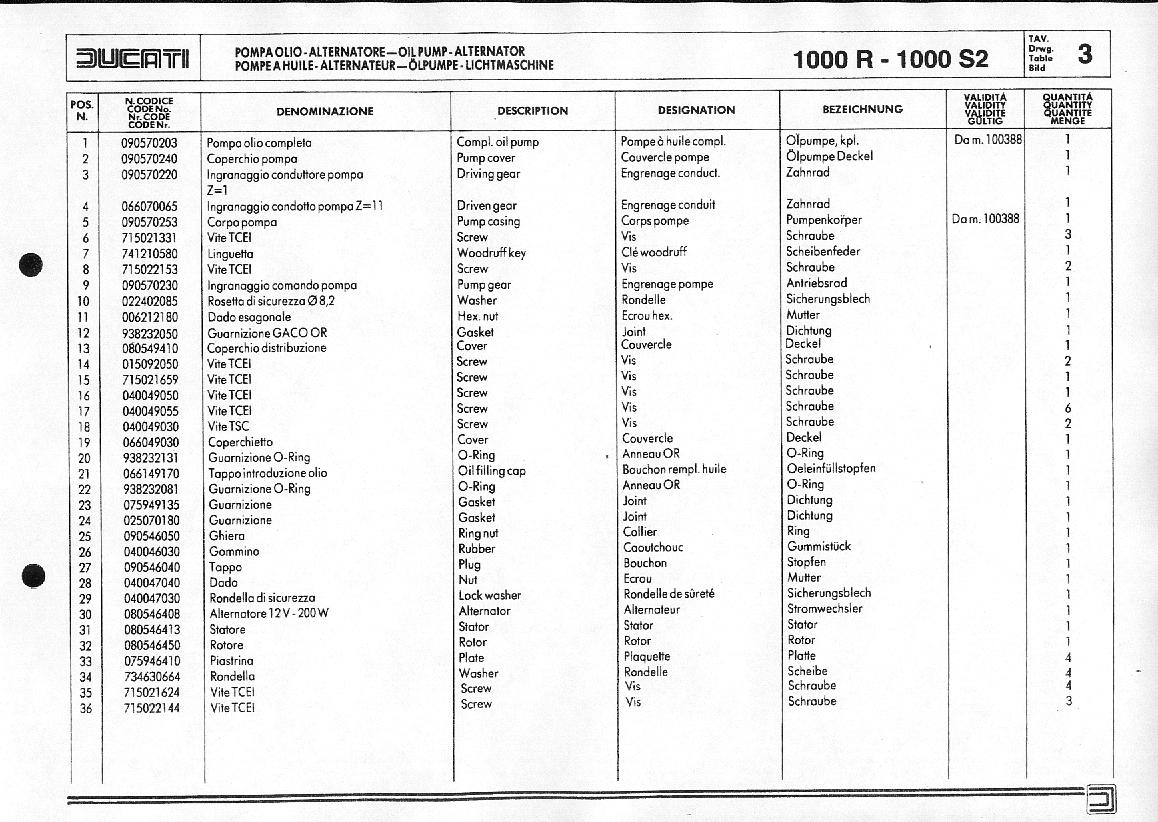

Oil Pump - Alternator	Oil Pump - Alternator	Part Numbers 1-36 Part Numbers 37-43

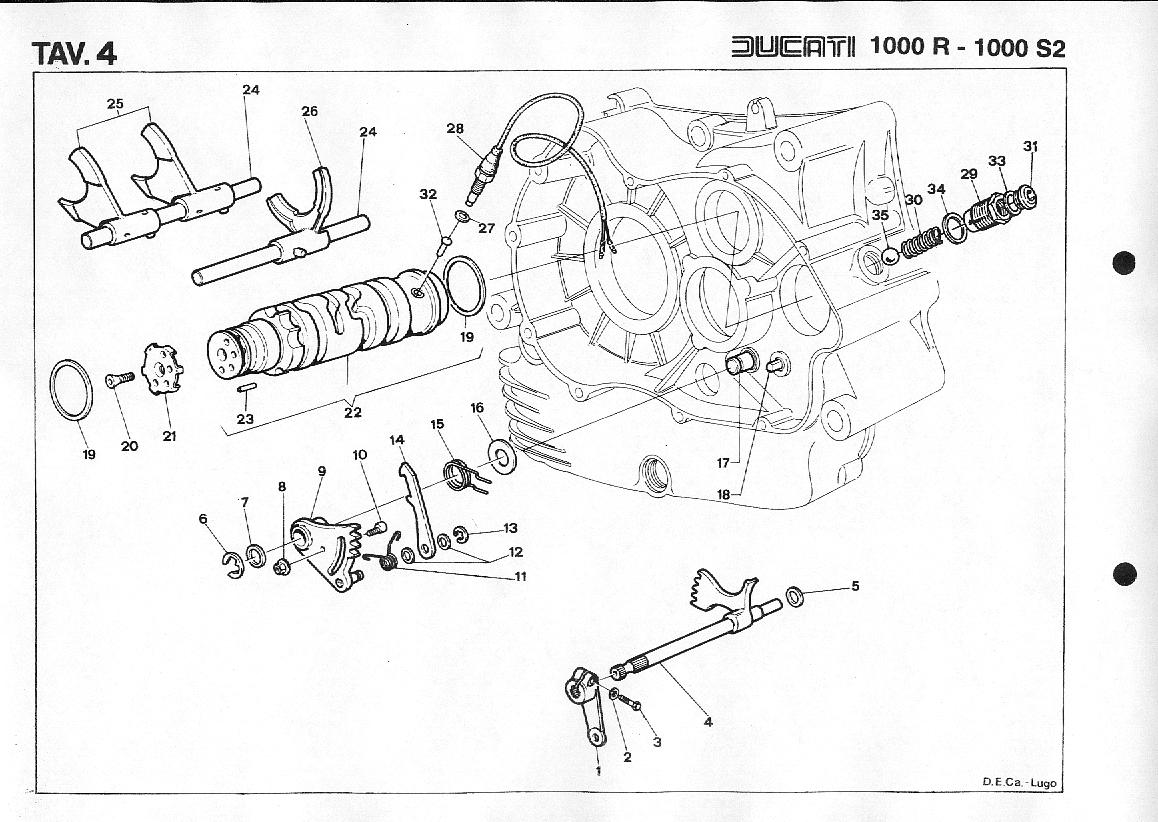

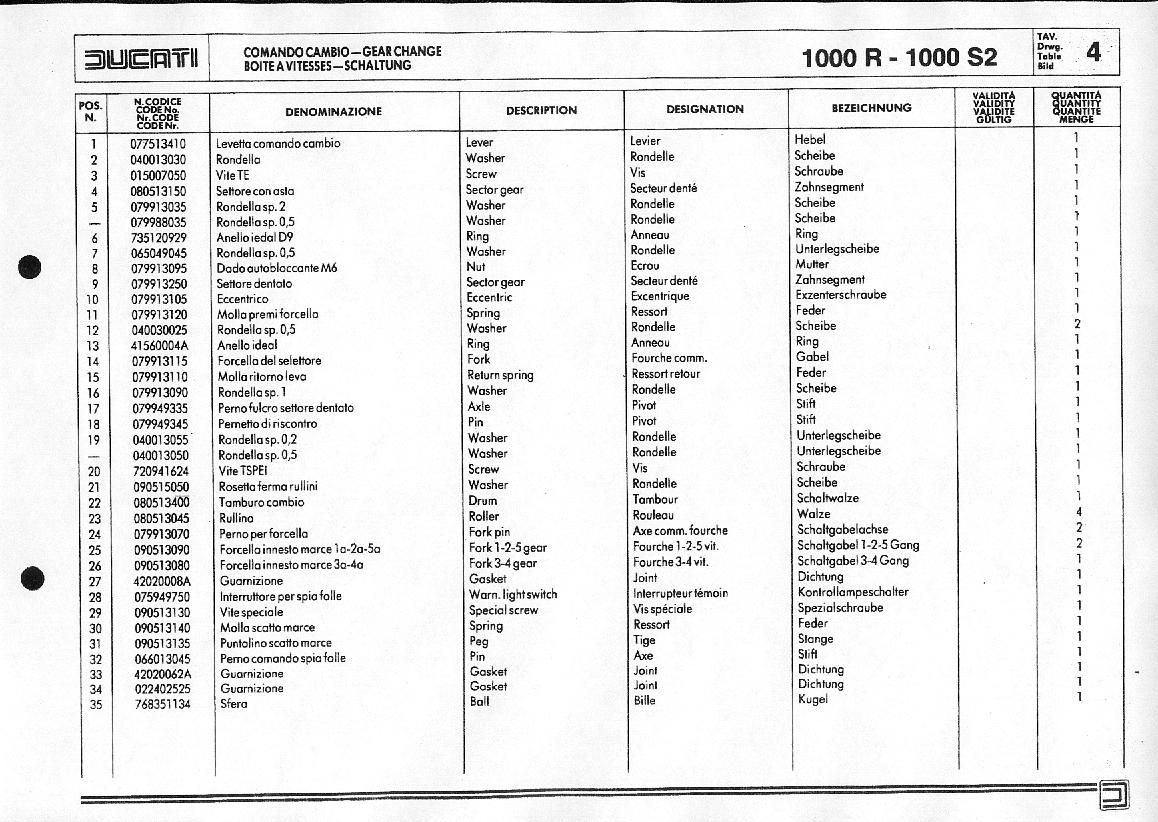

Gear Change	Selectors	Part Numbers 1-35

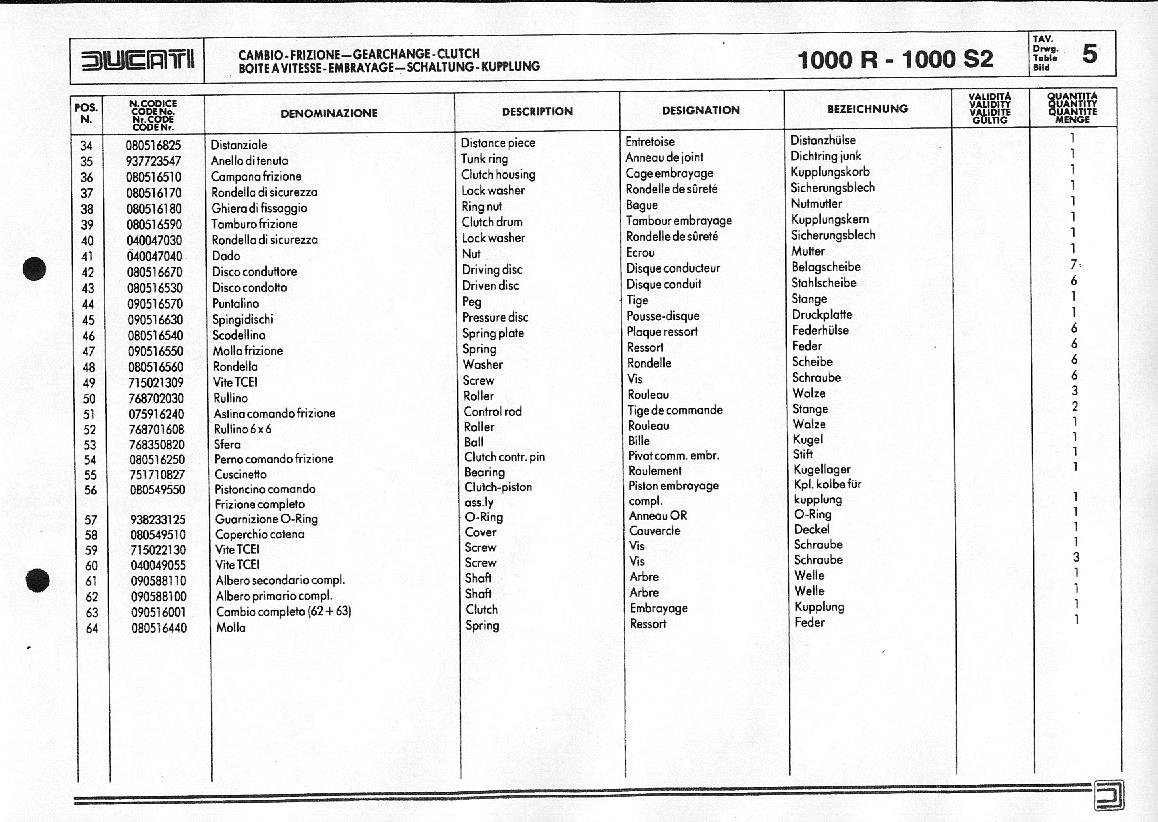

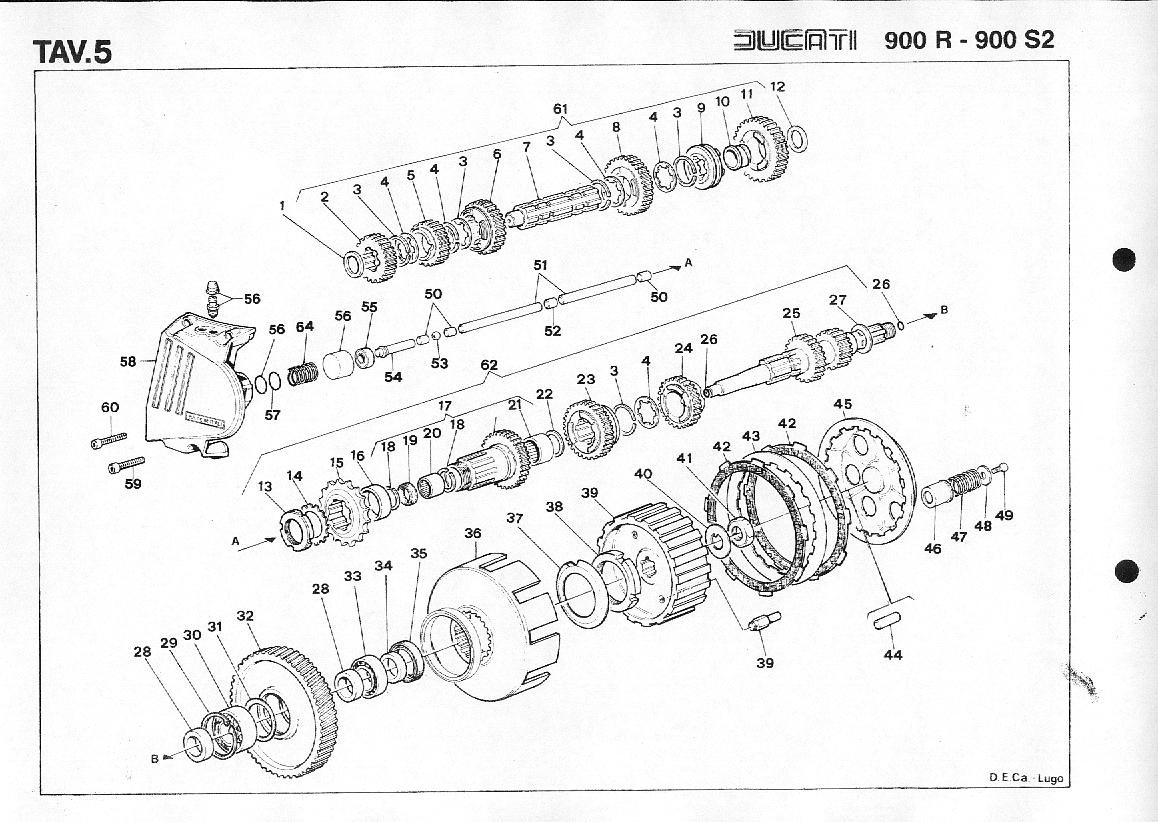

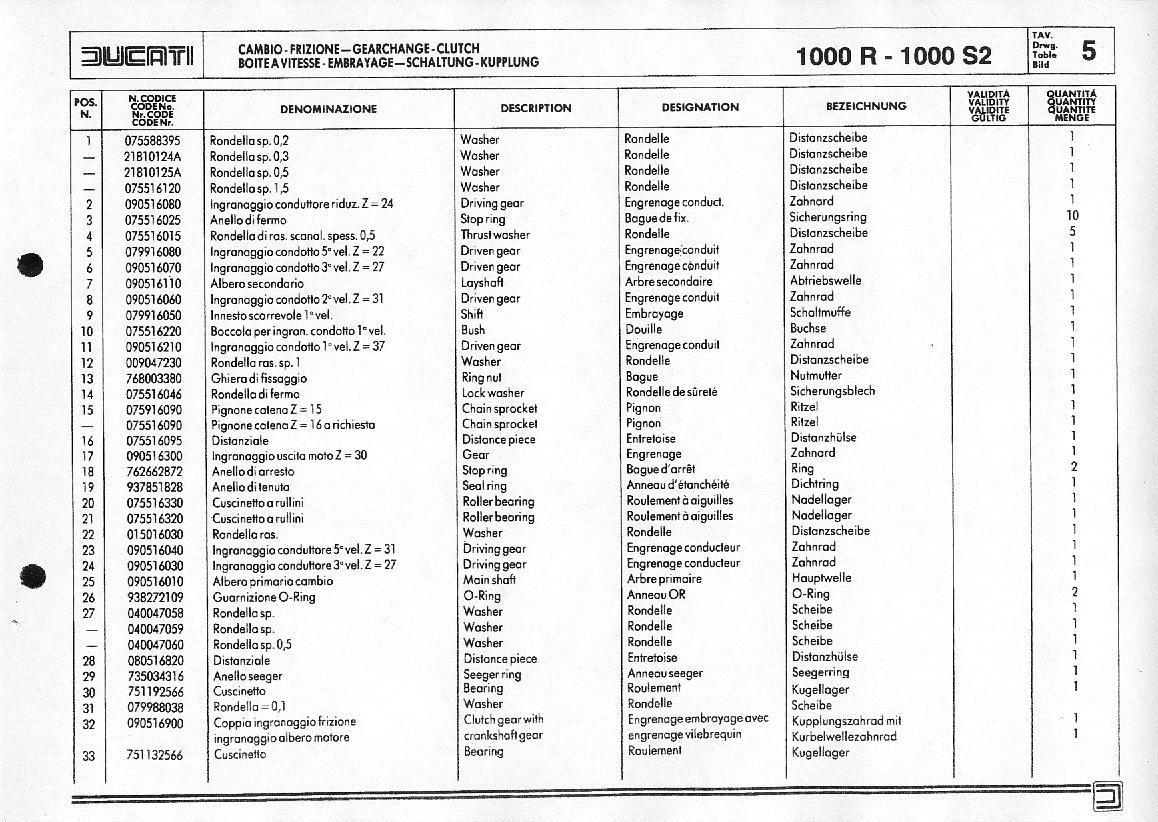

	Clutch	Part Numbers 1-33 Part Numbers 34-64

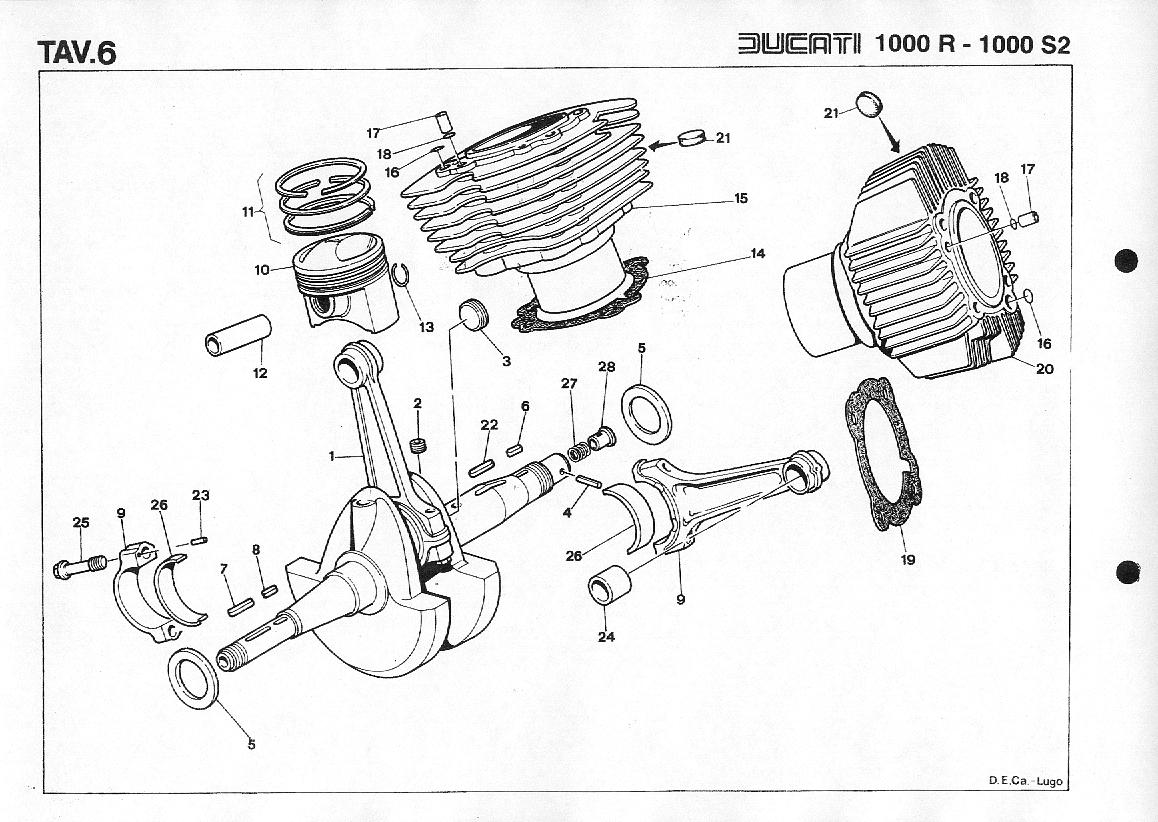

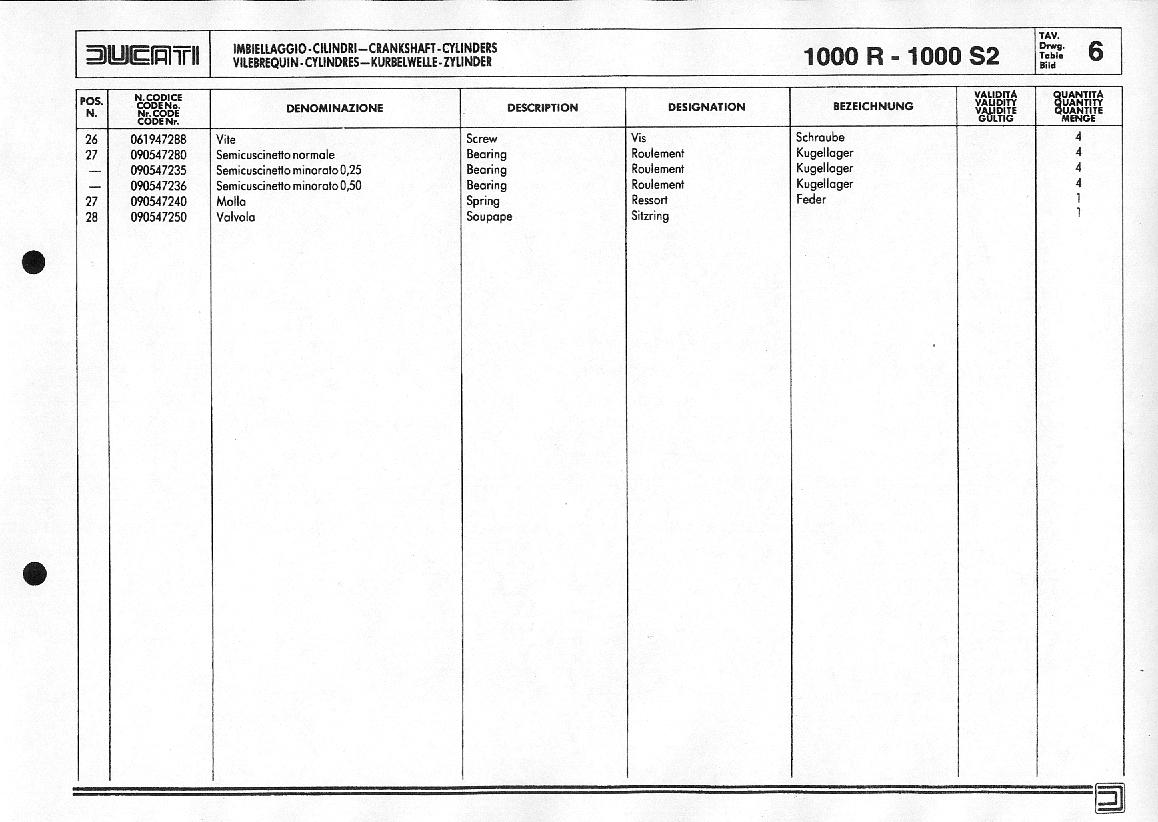

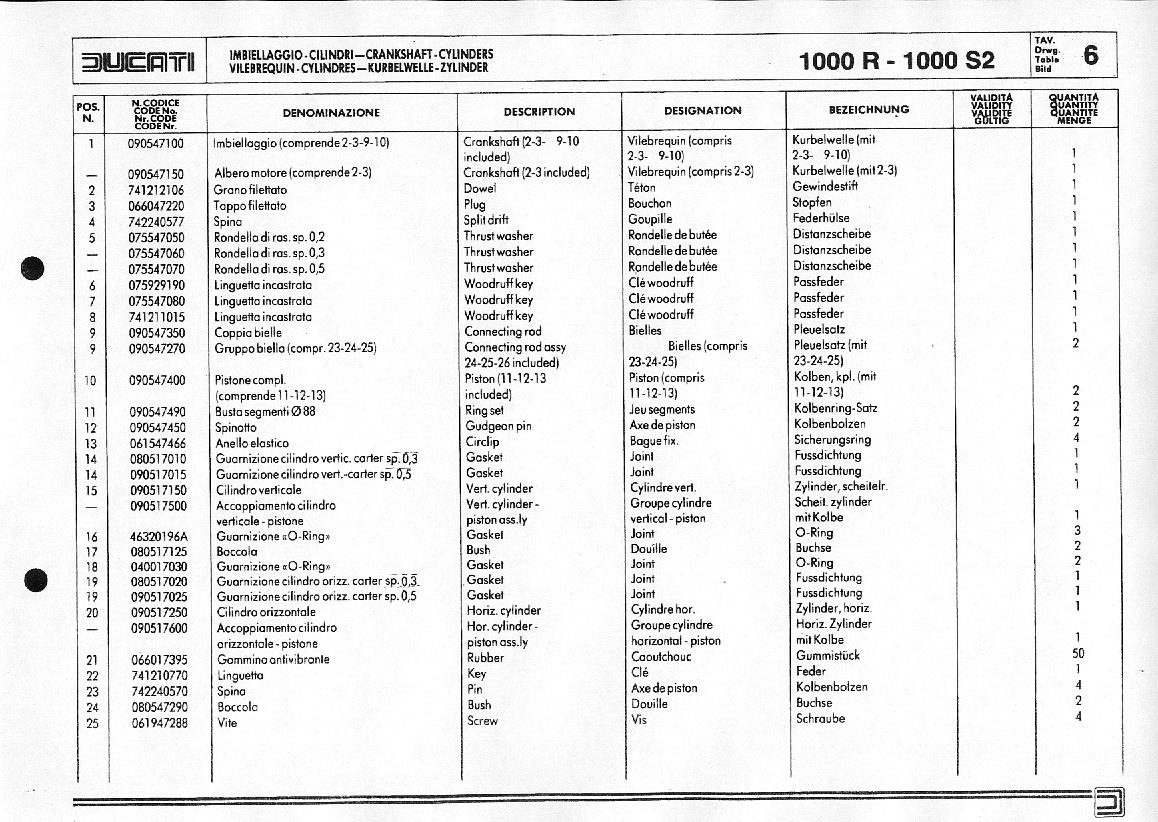

Cylinders	Crankshaft - Cylinders	Part Numbers 1-25 Part Numbers 26-28

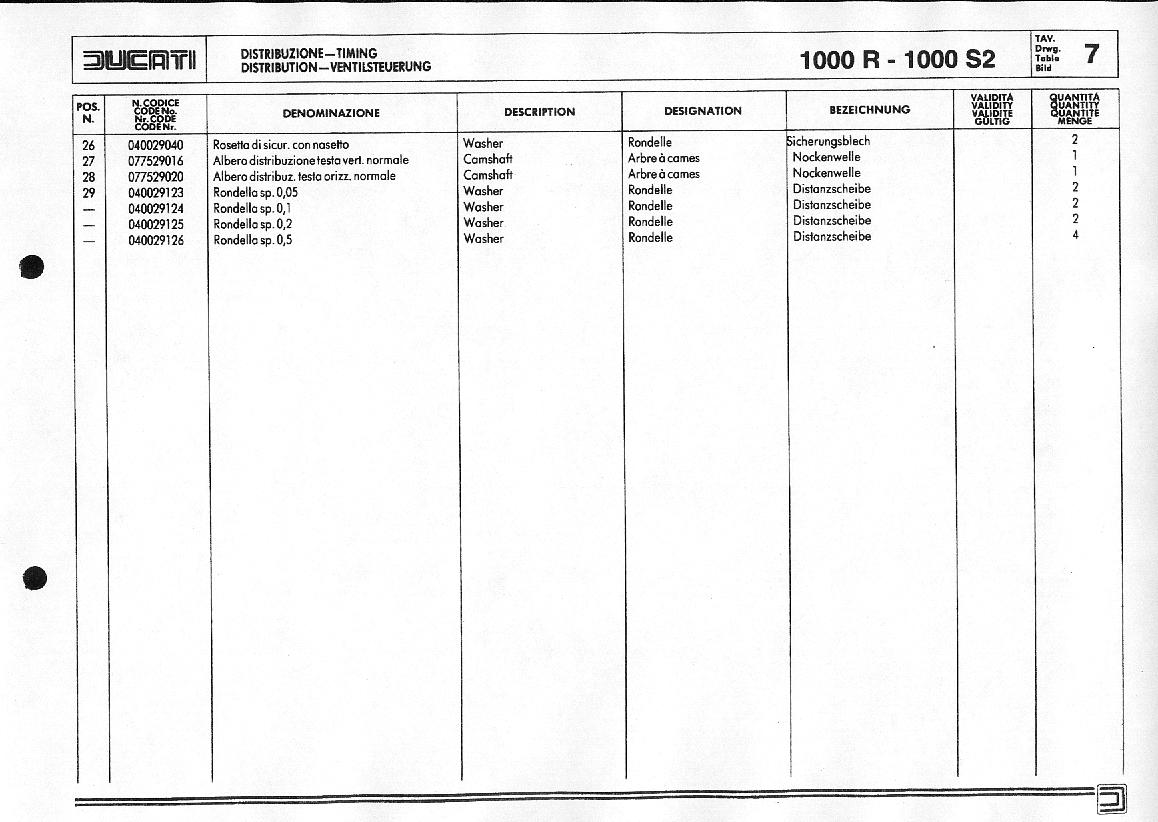

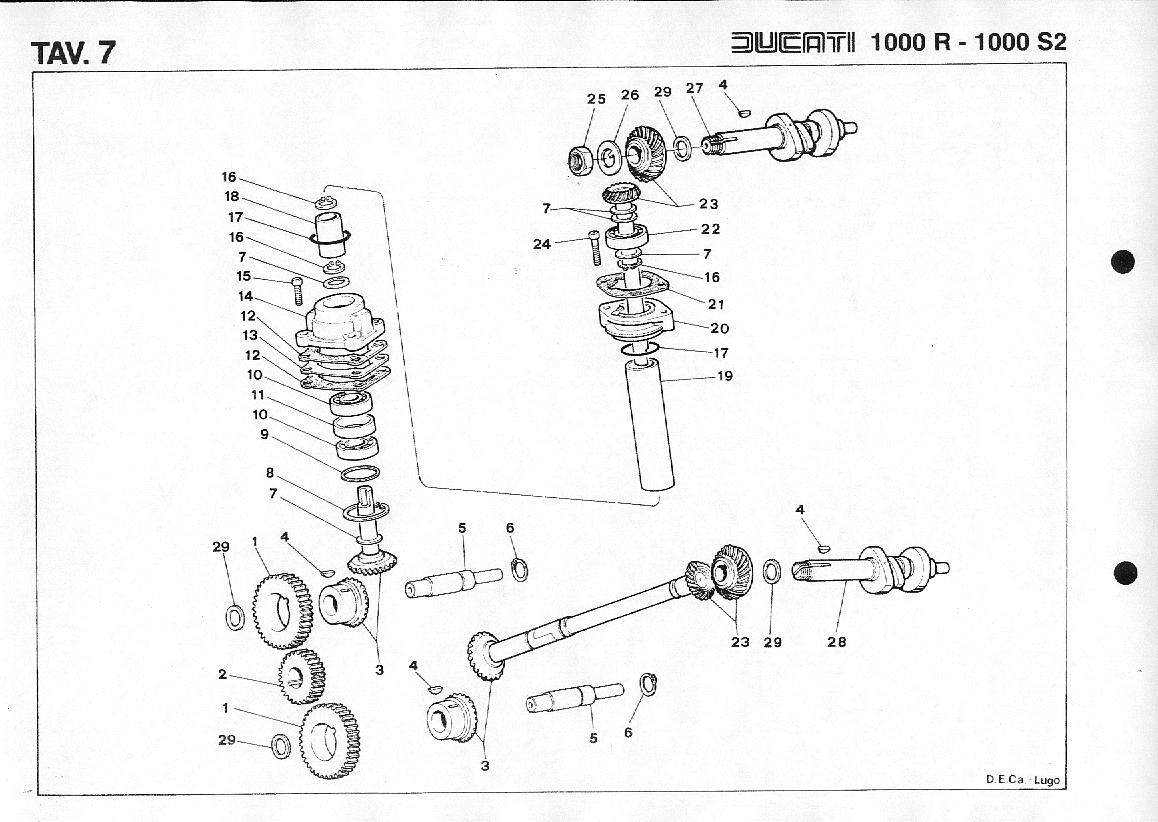

	Timing	Part Numbers 1-25 Part Numbers 26-29

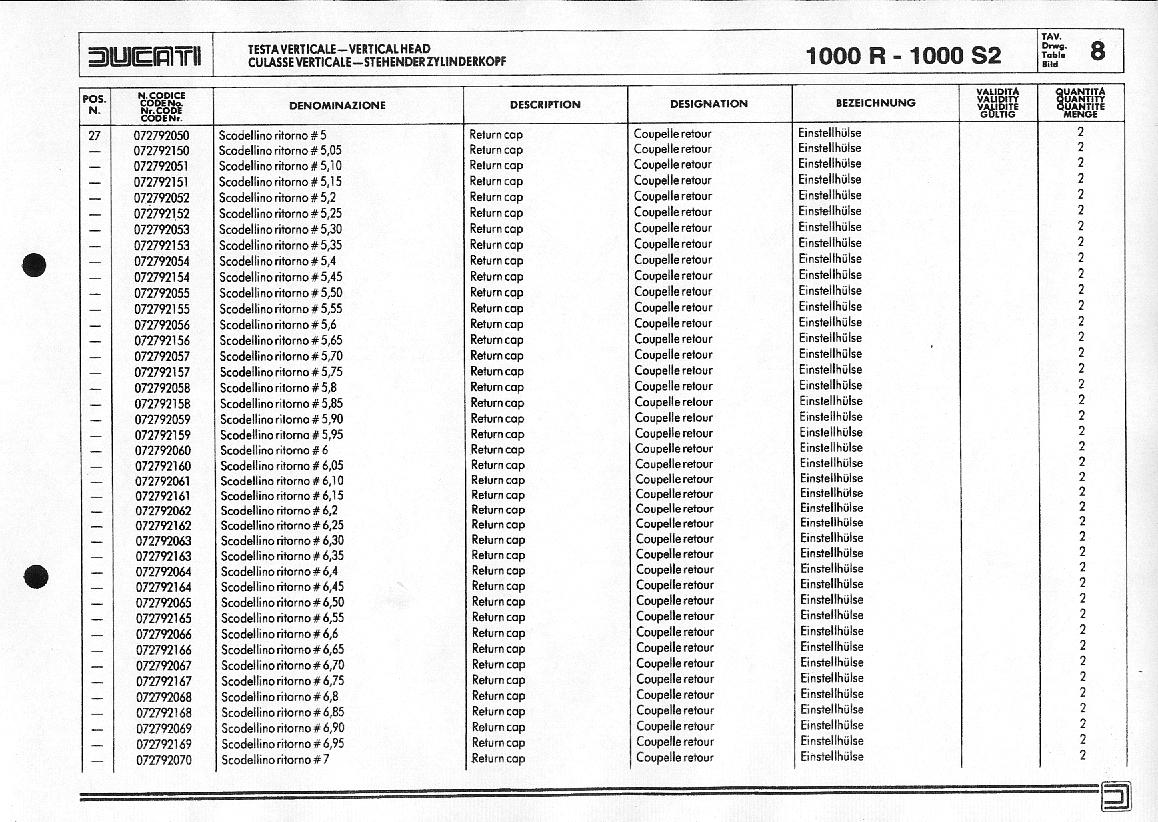

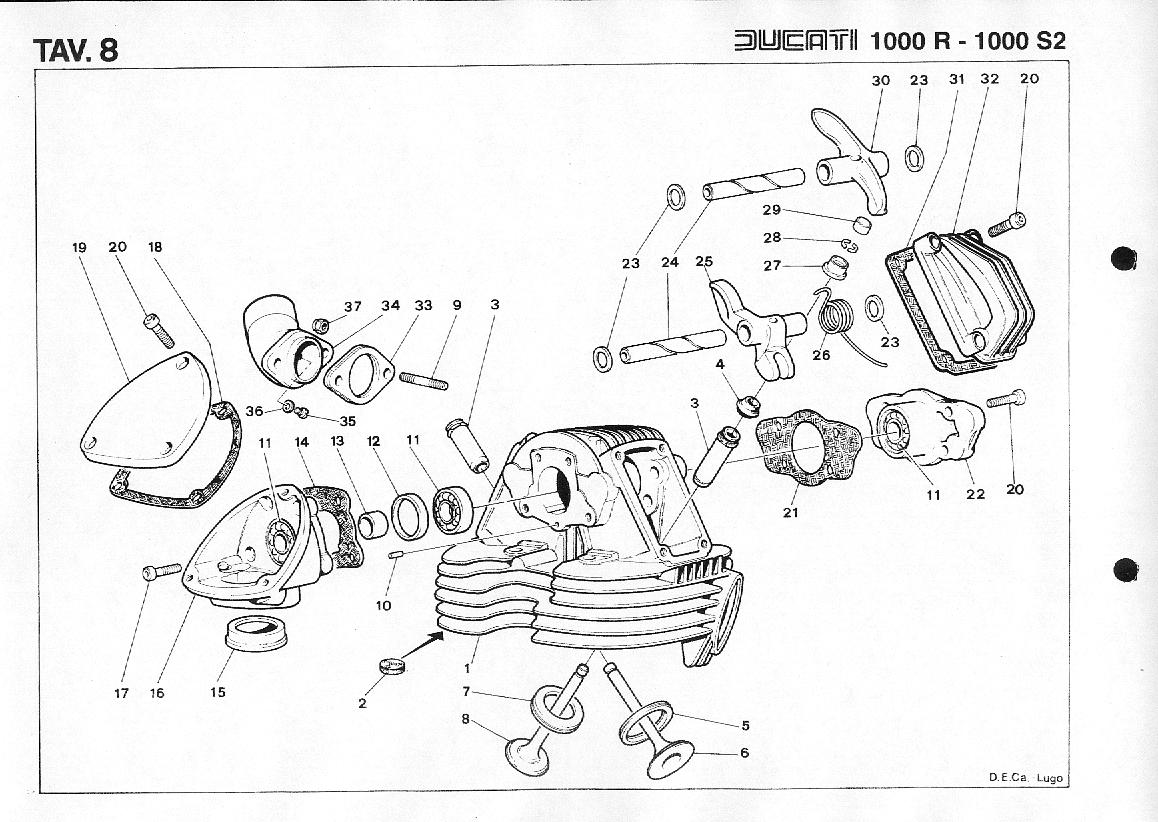

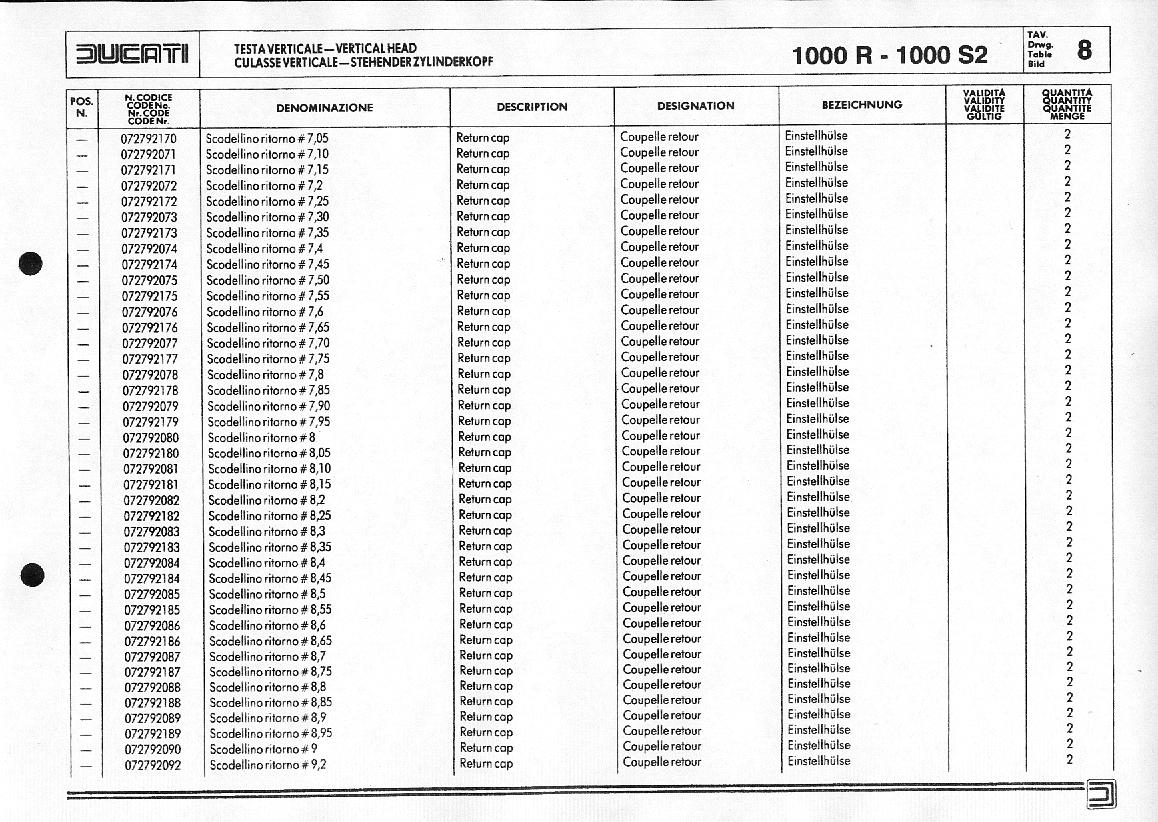

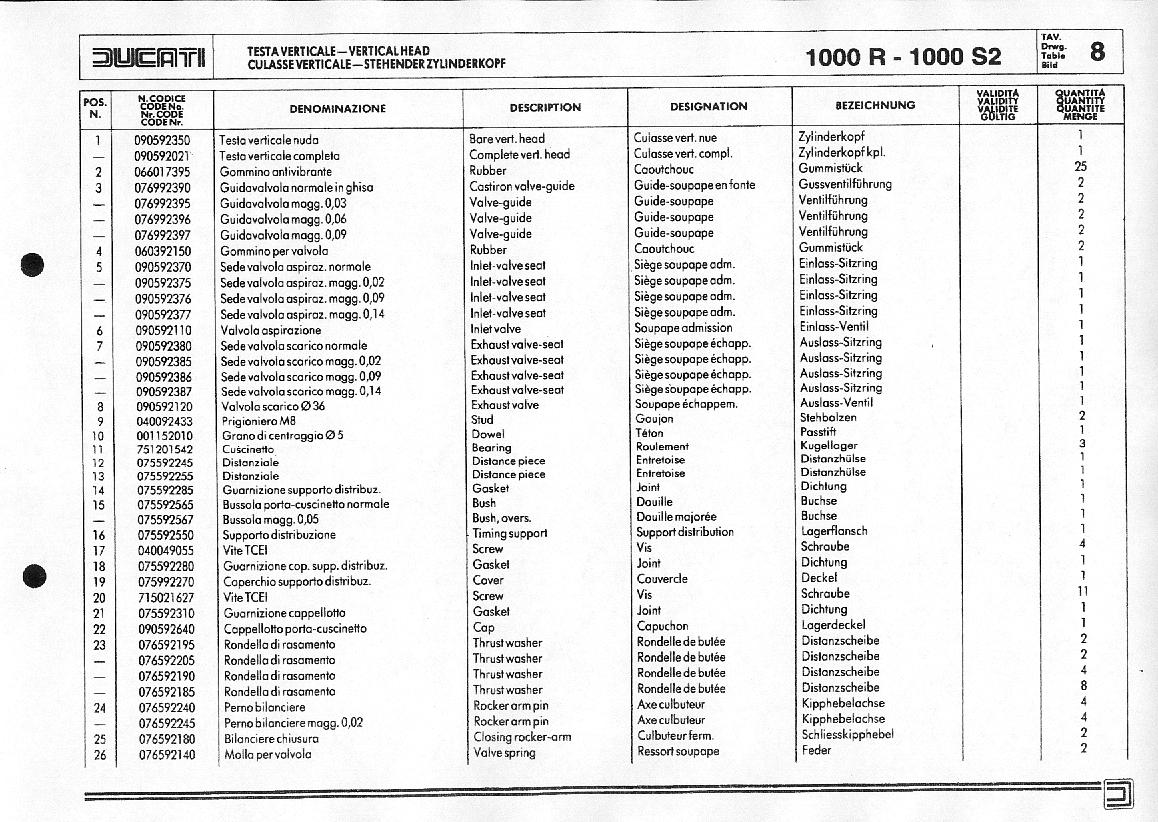

	Virticle cylinder head	Part Numbers 1-27 Part Numbers 27-27 Part Numbers 27-27 Part Numbers 27-29

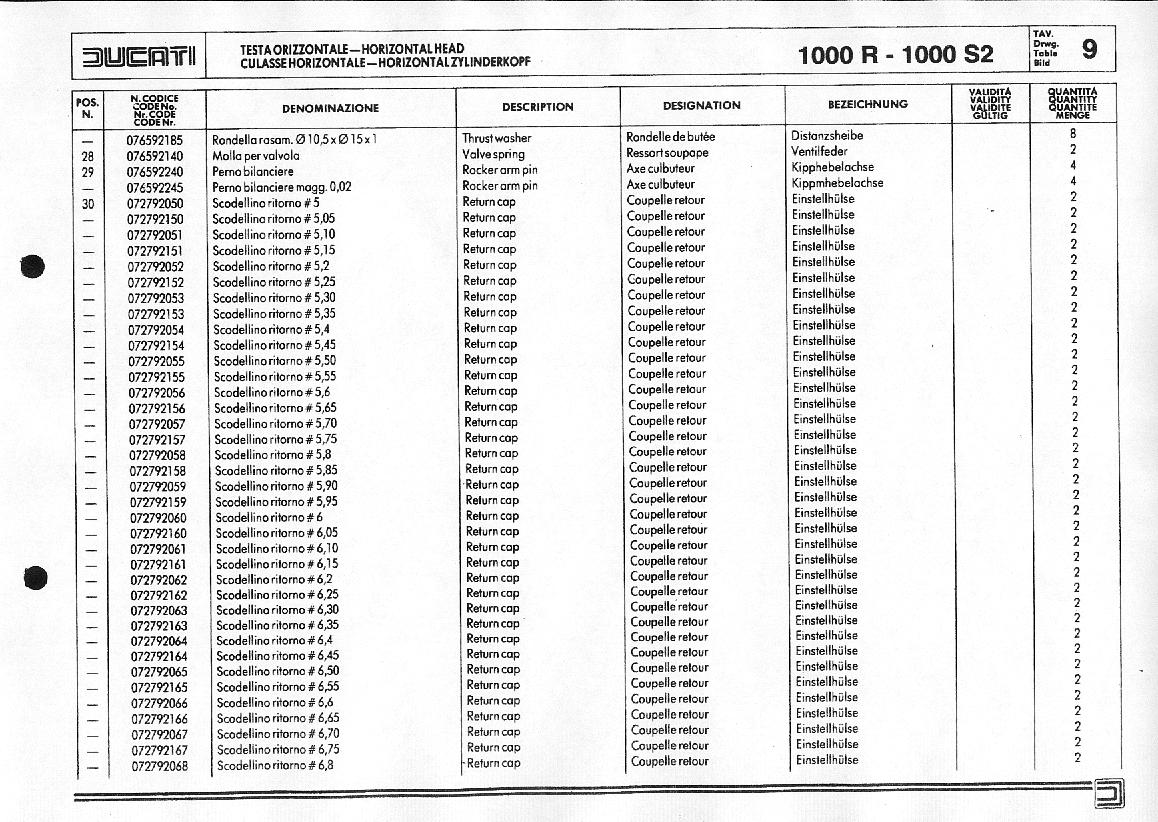

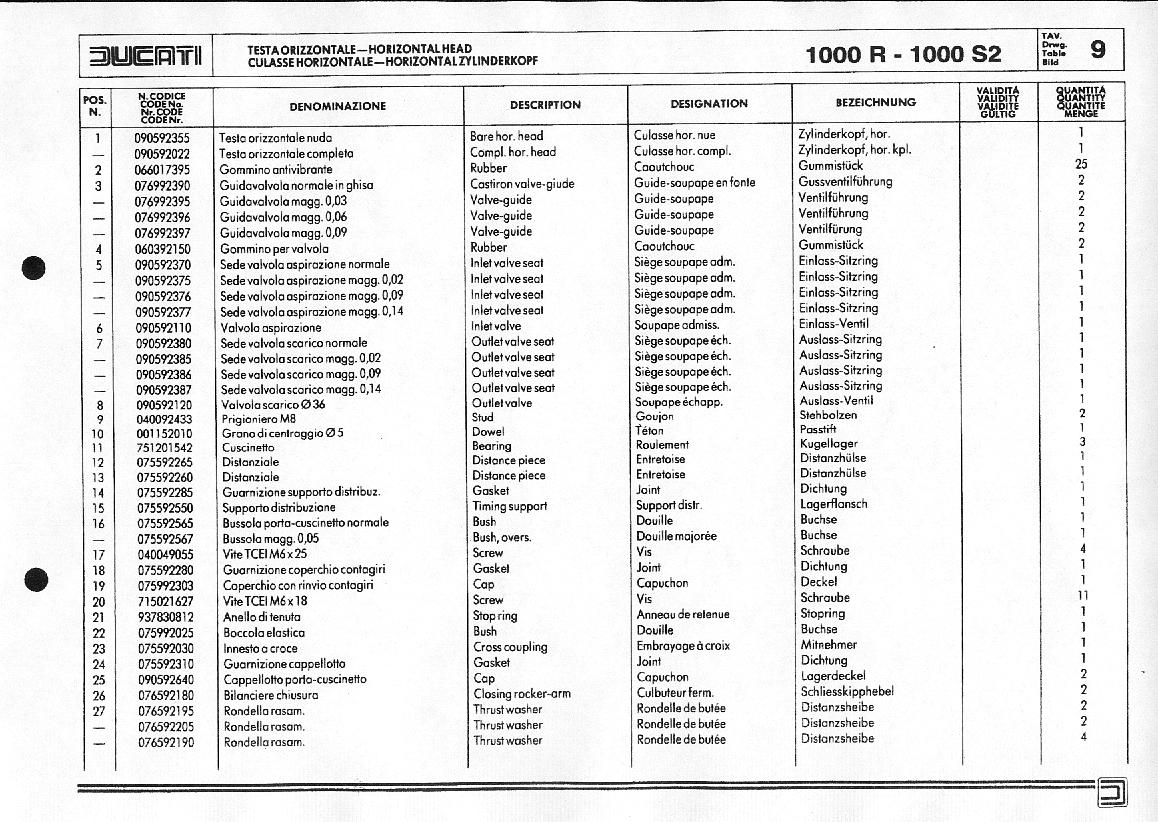

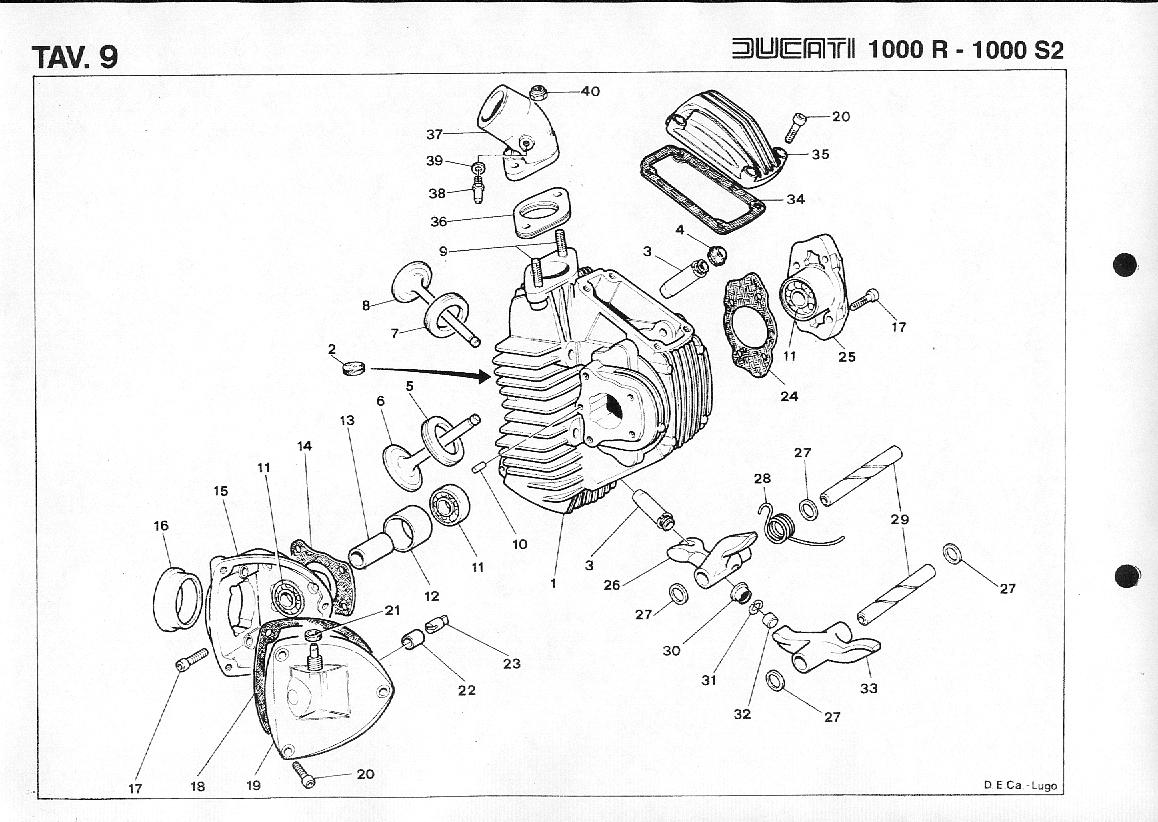

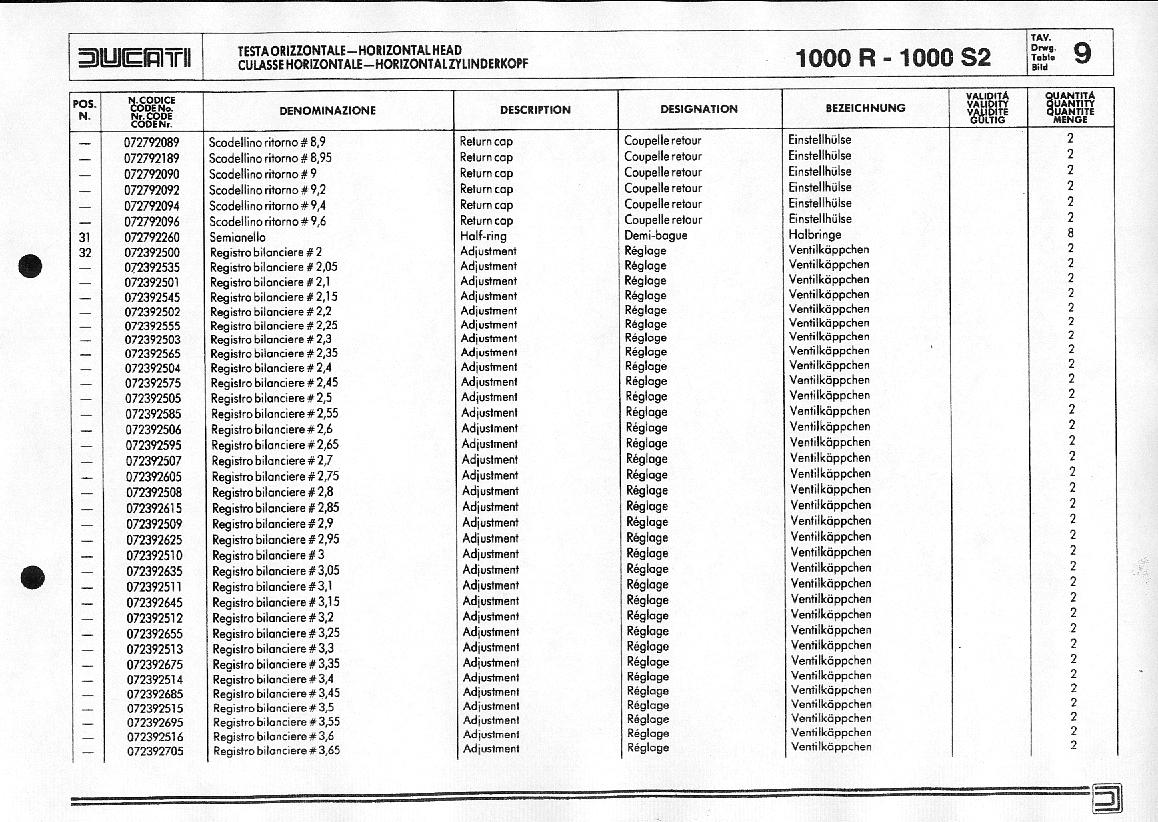

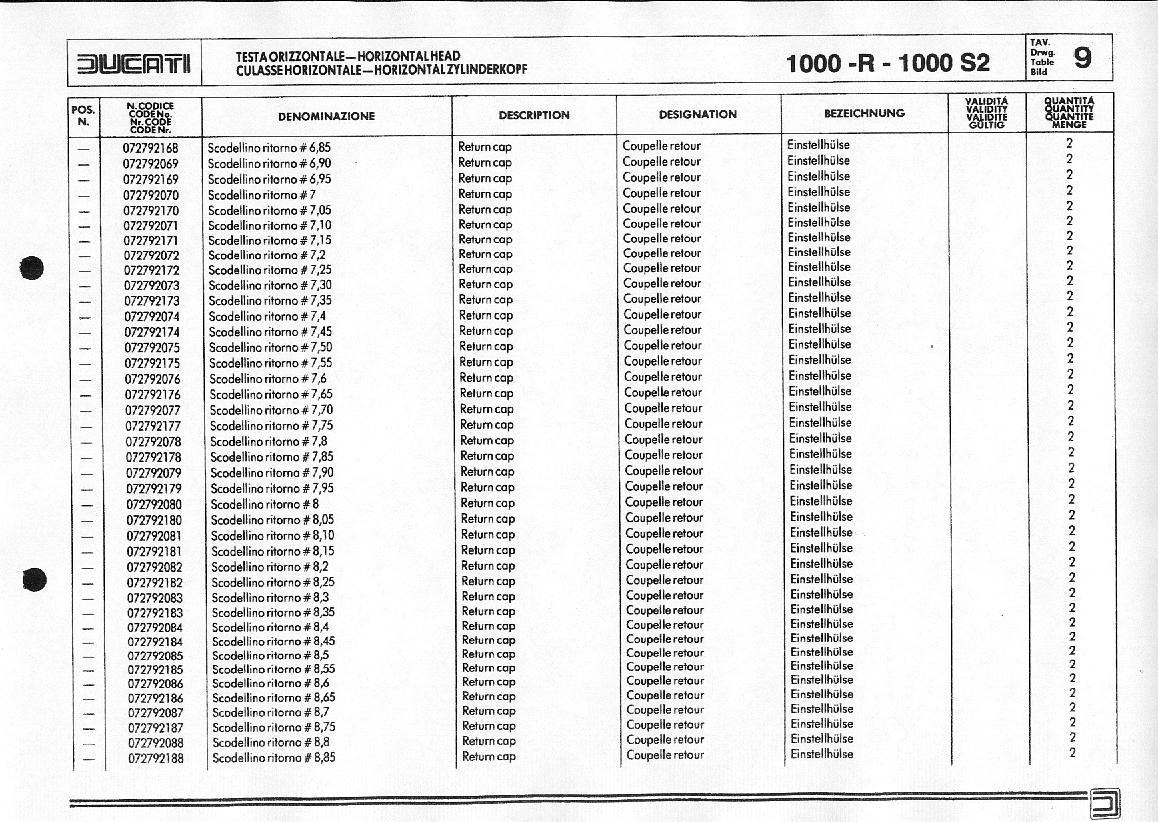

	Horizontal cylinder head	Part Numbers 1-27 Part Numbers 27-27 Part Numbers 27-30 Part Numbers 30-32 Part Numbers 32-40

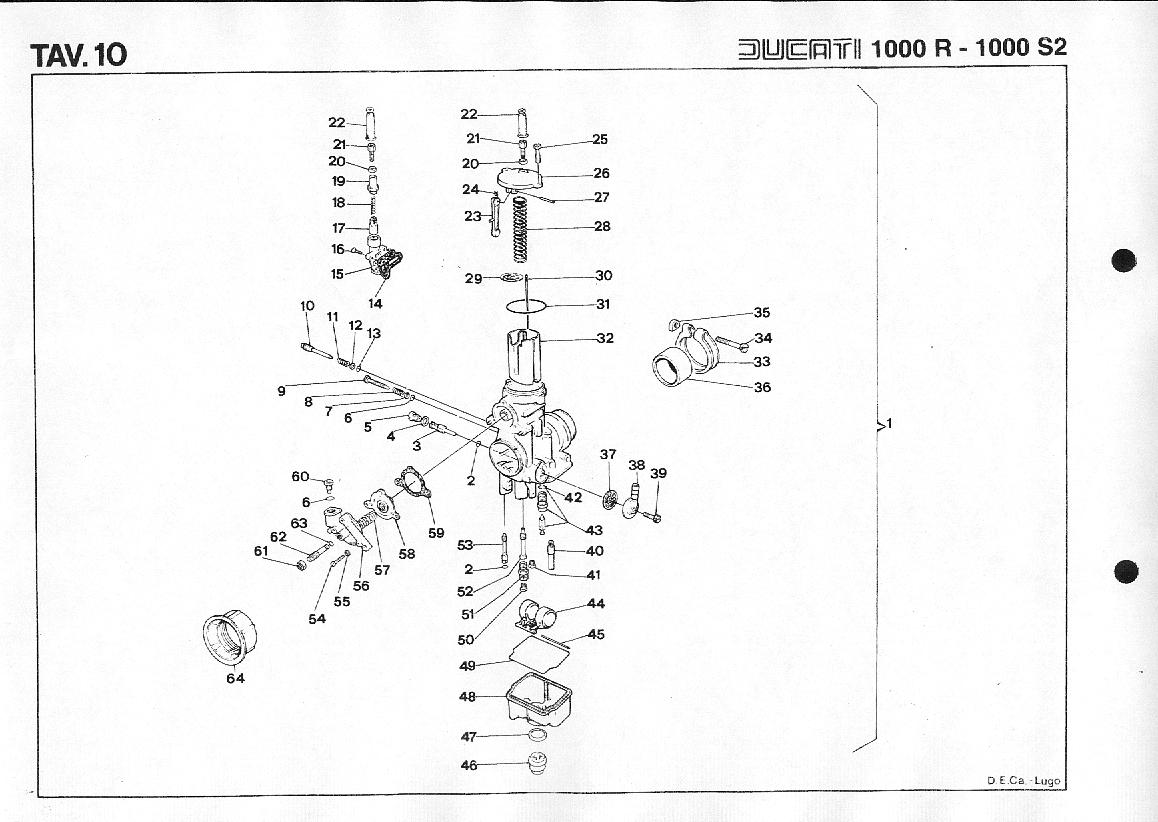

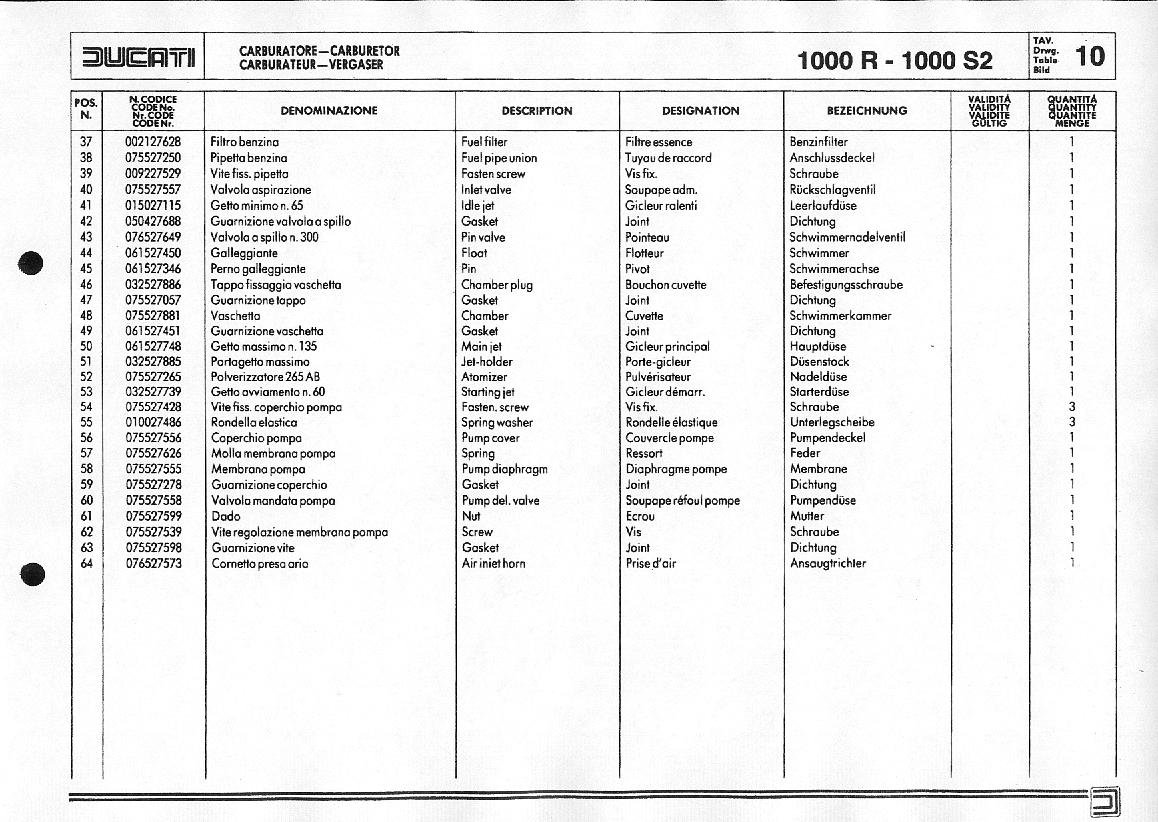

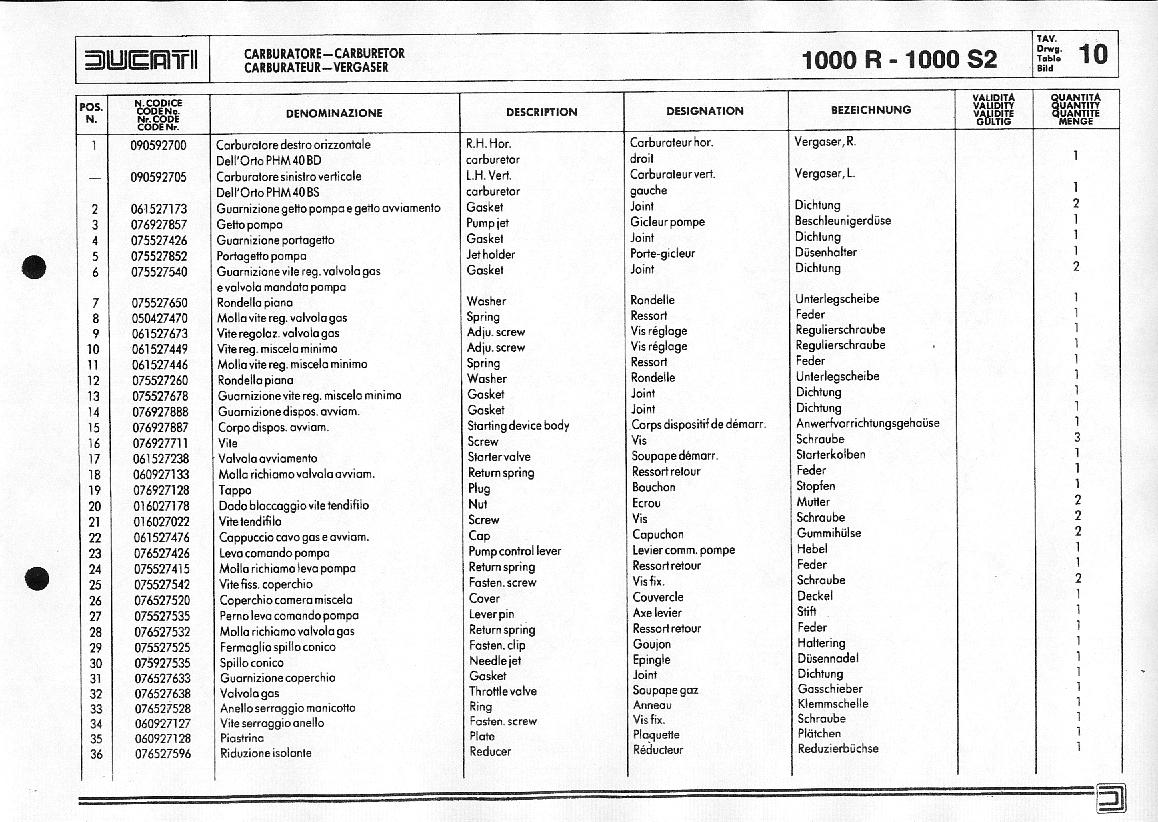

Carburetors	Dell'Orto PHM 40mm	Part Numbers 1-36 Part Numbers 37-64

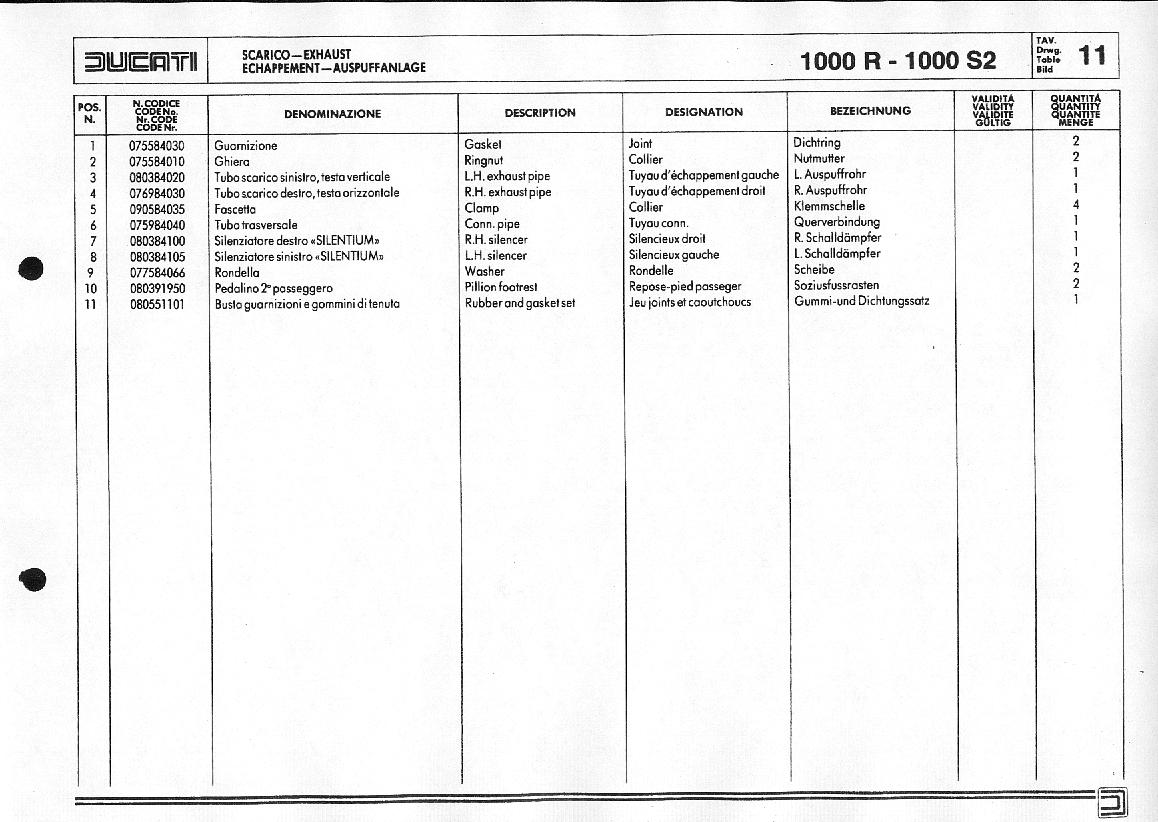

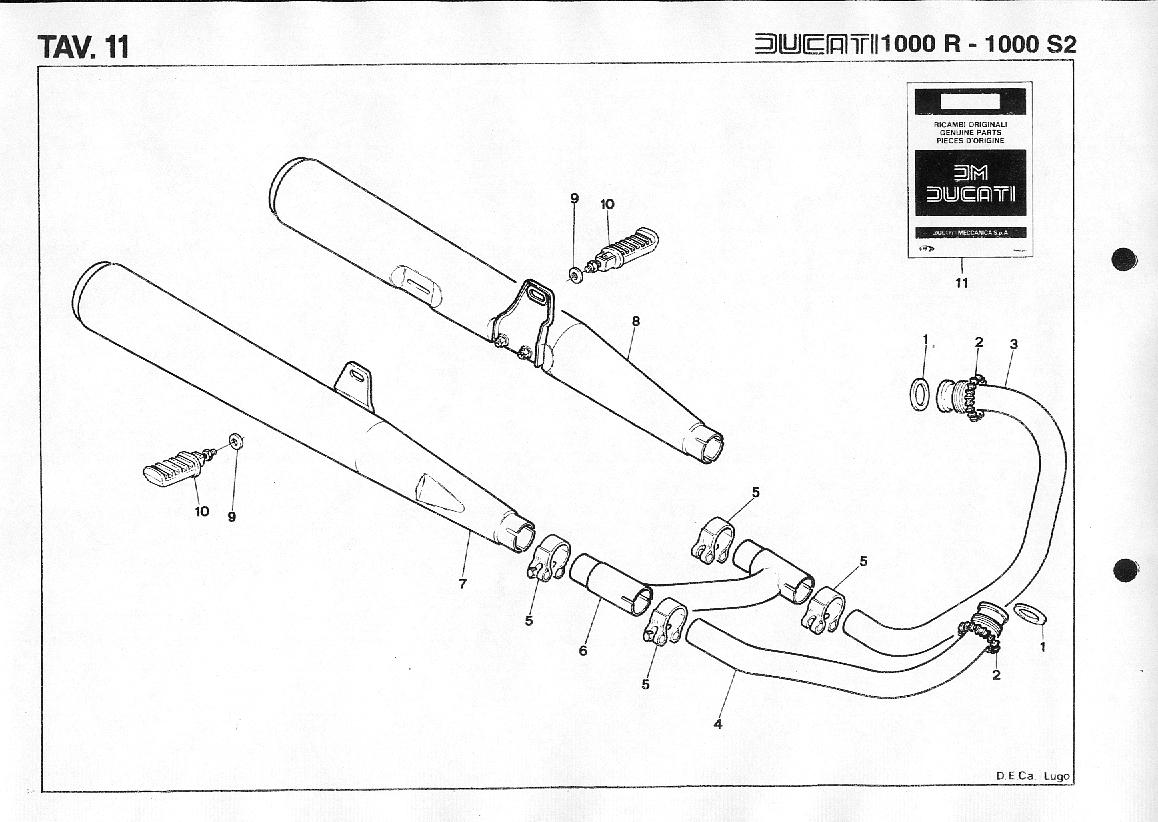

Exhaust	Exhaust system MRH or S2	Part Numbers 1-11

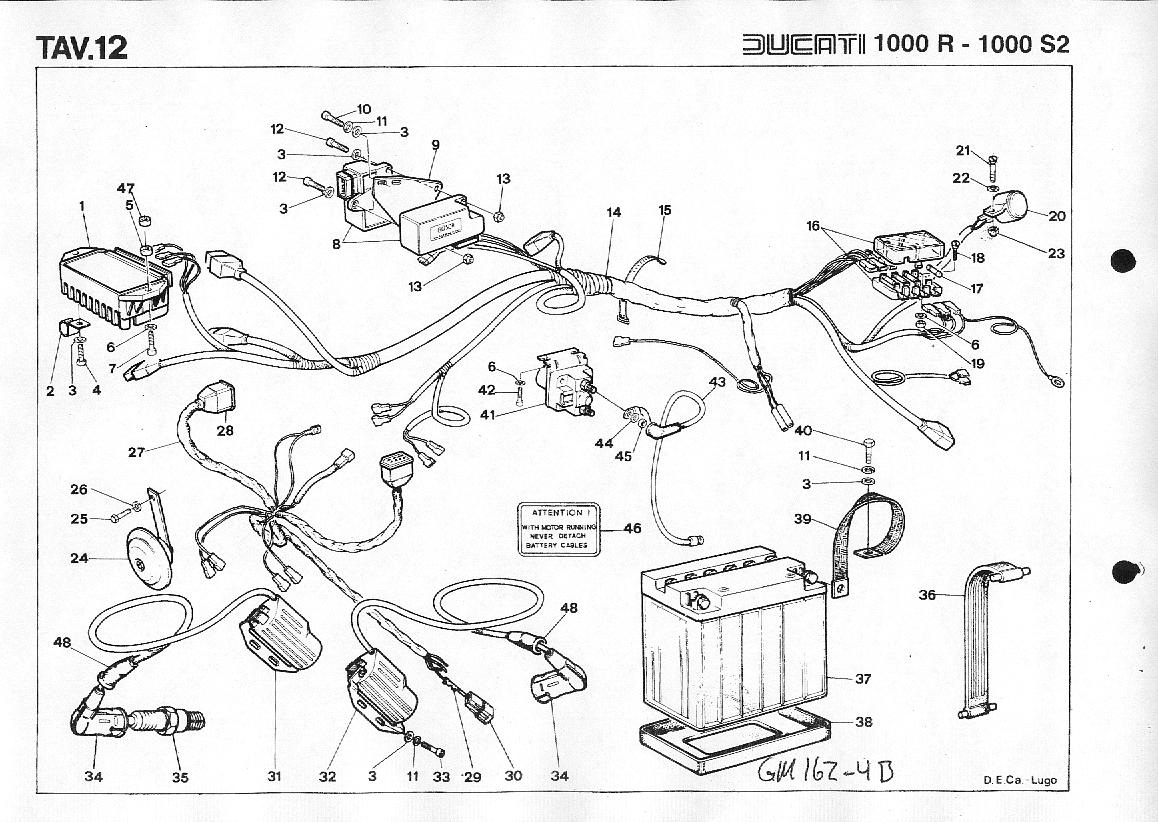

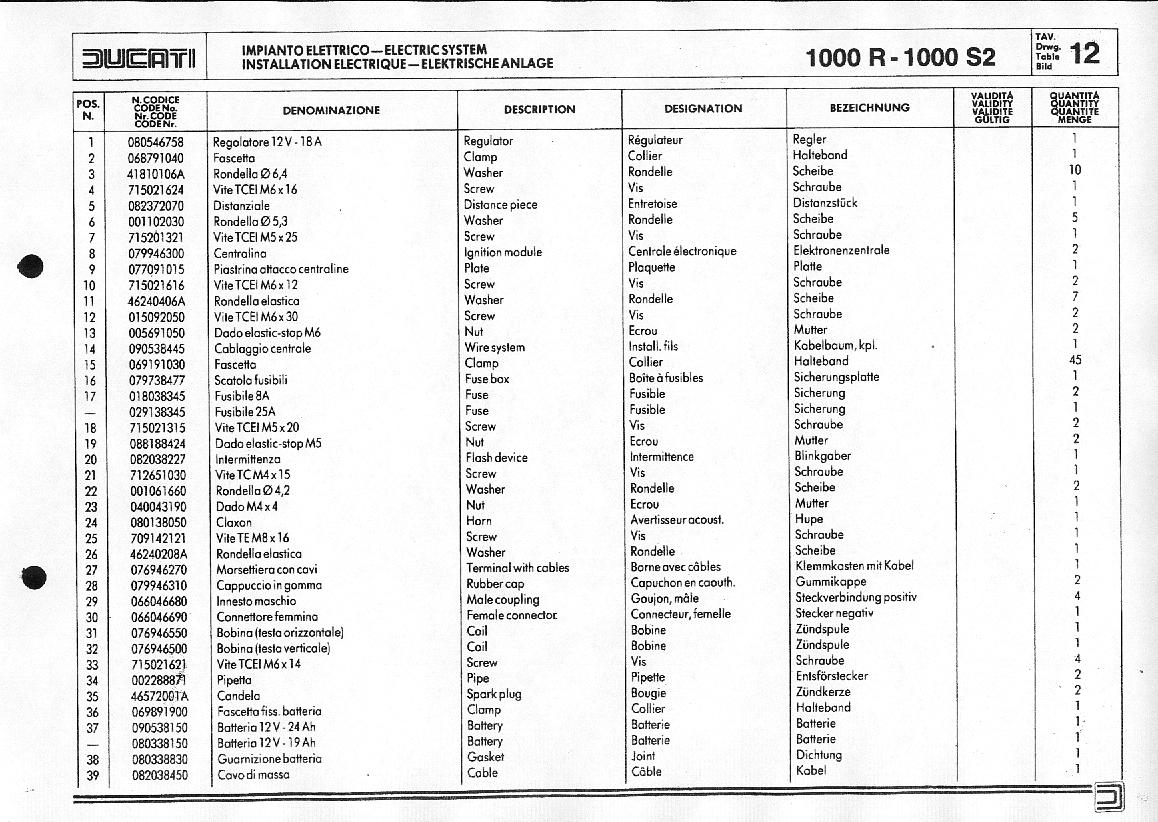

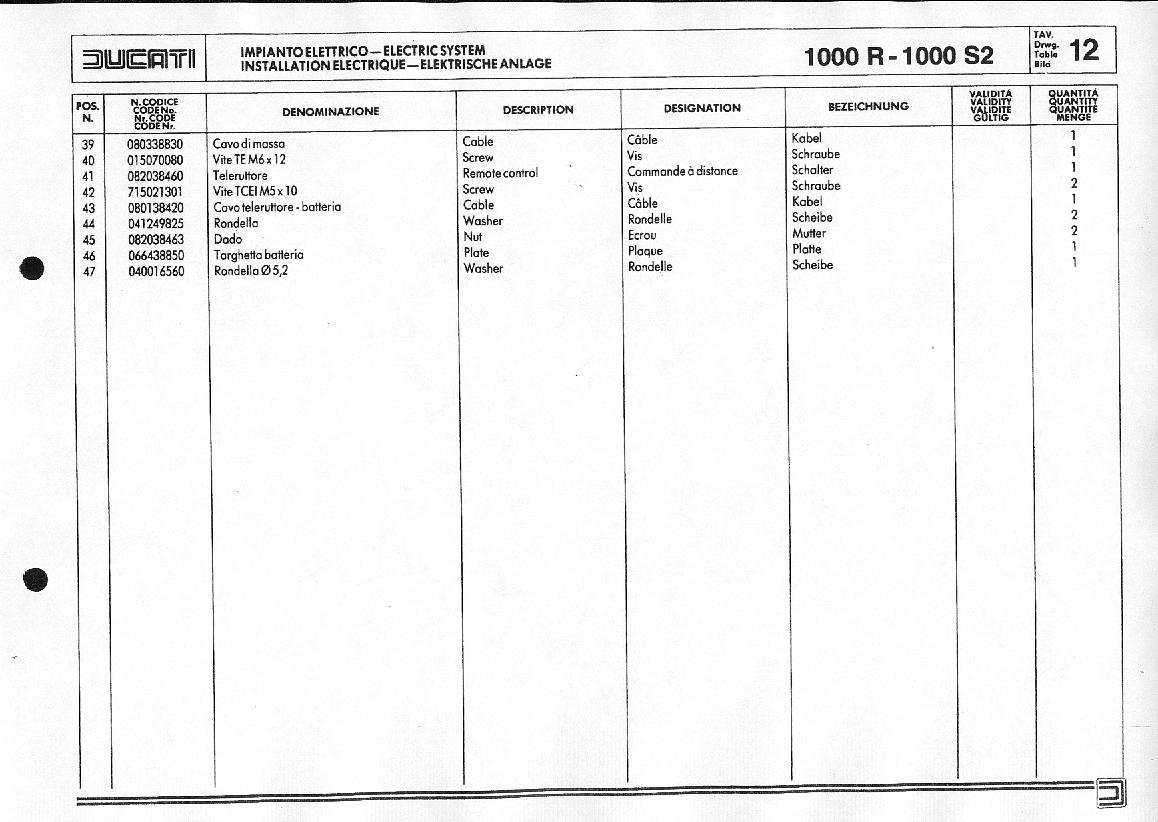

Electrical System	Harness, Battery, Coils, Plugs, Regulator etc.	Part Numbers 1-39 Part Numbers 40-47

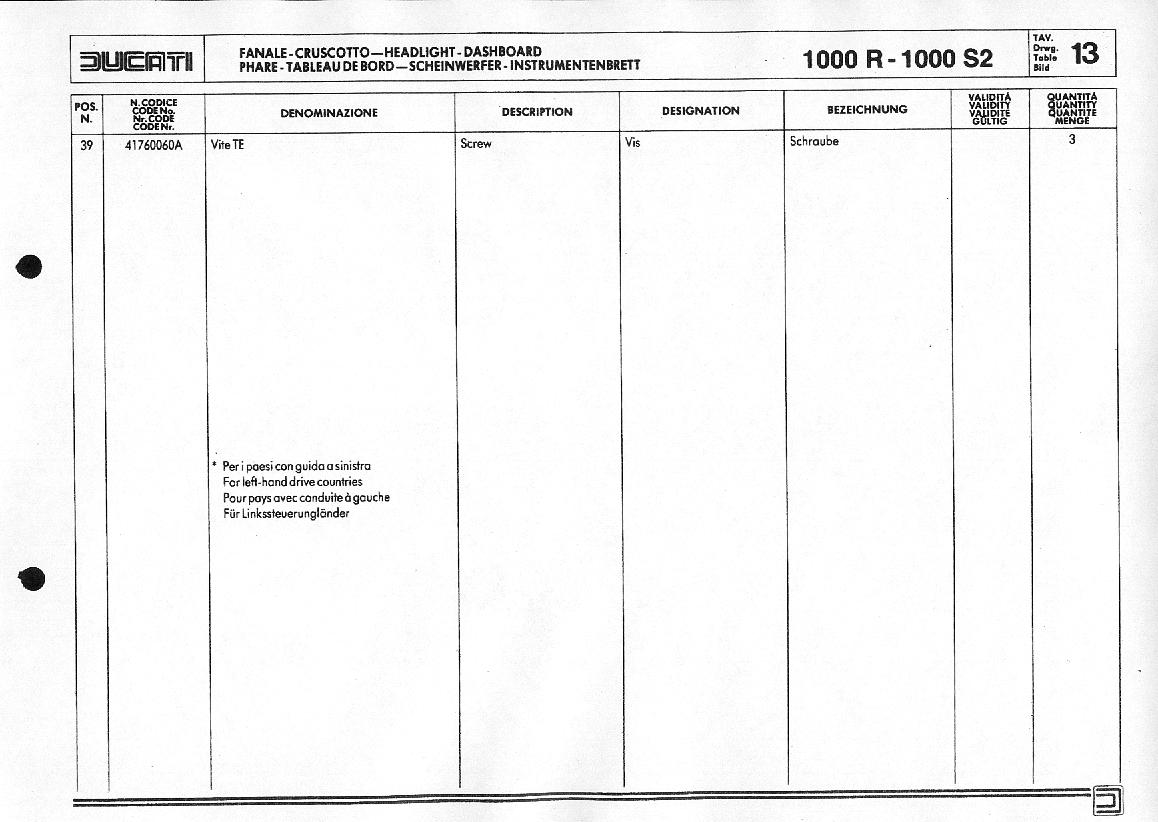

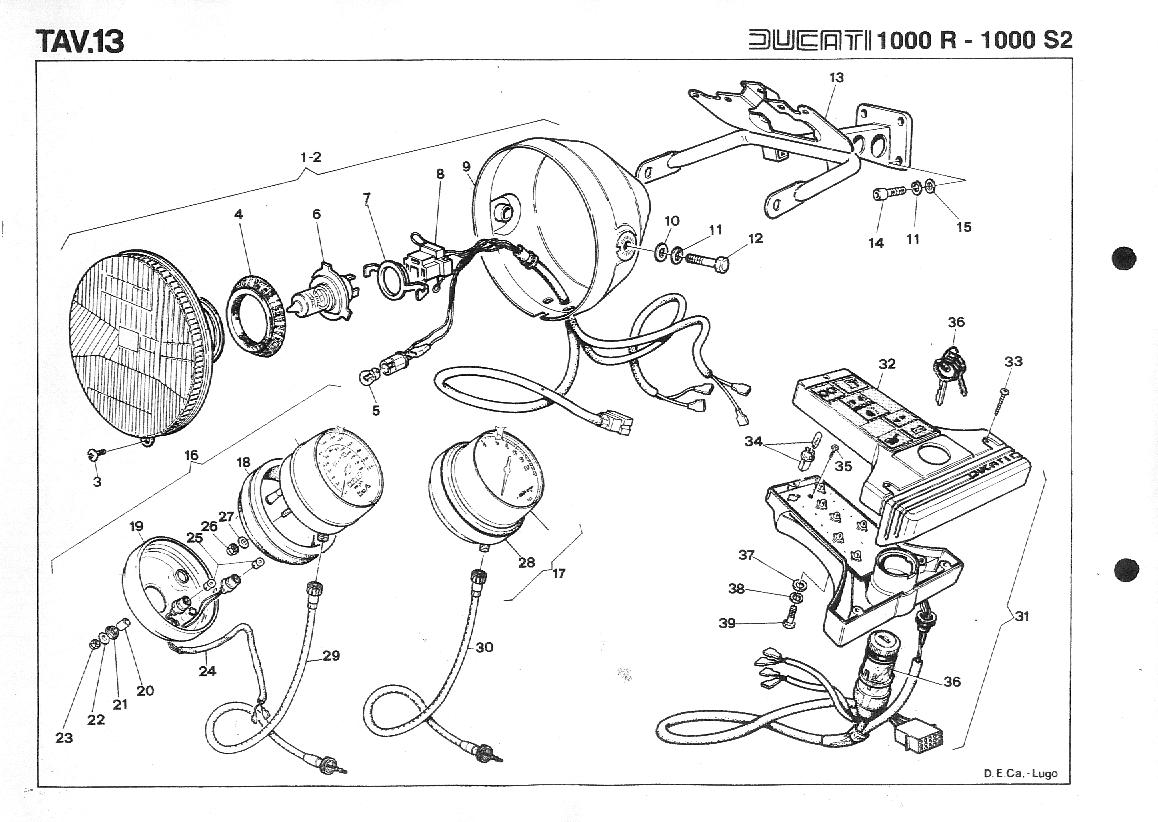

	Headlight - Dashboard	Part Numbers 1-38 Part Numbers 39-39

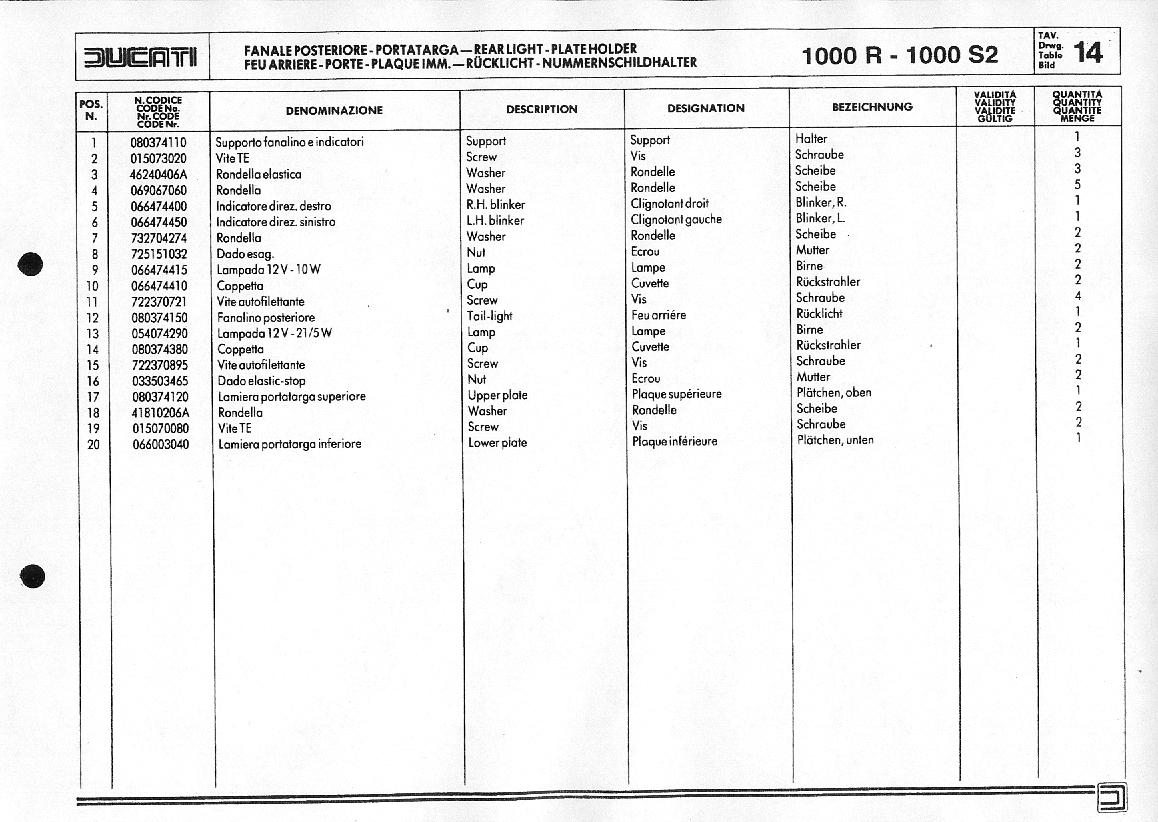

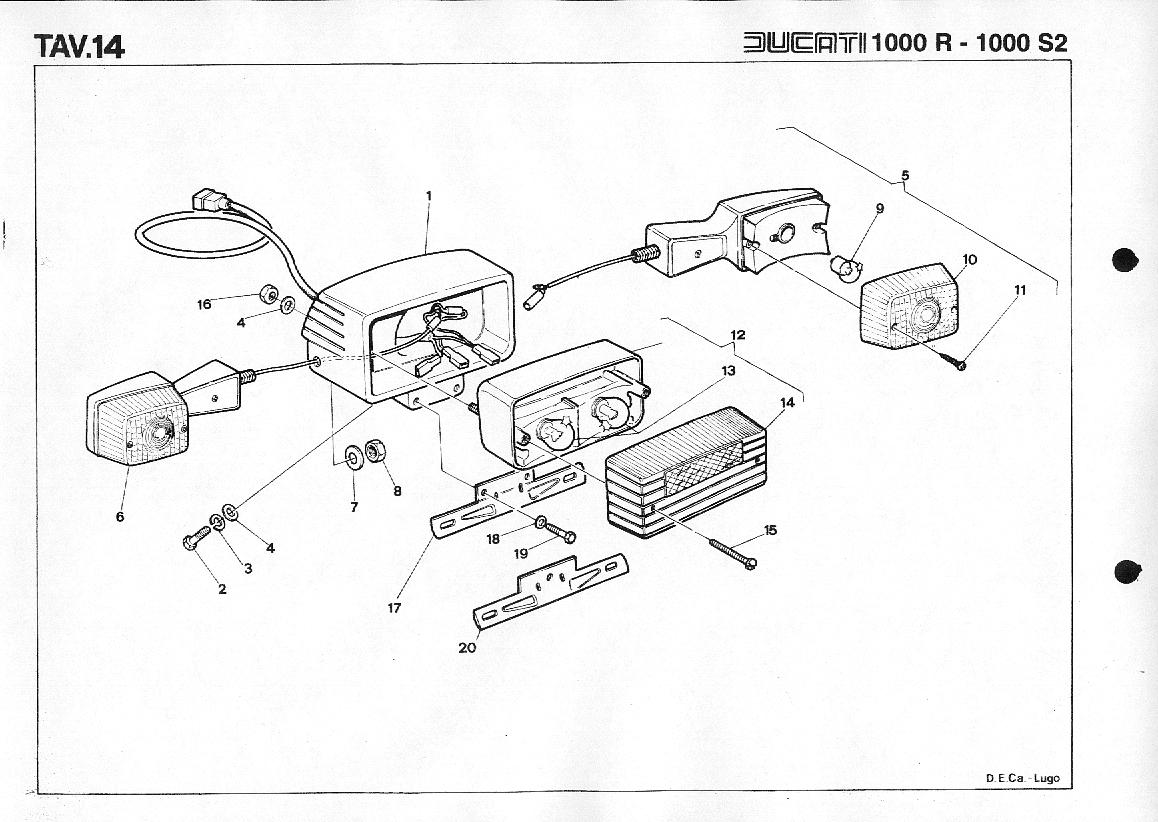

	Rear light - plate holder	Part Numbers 1-20

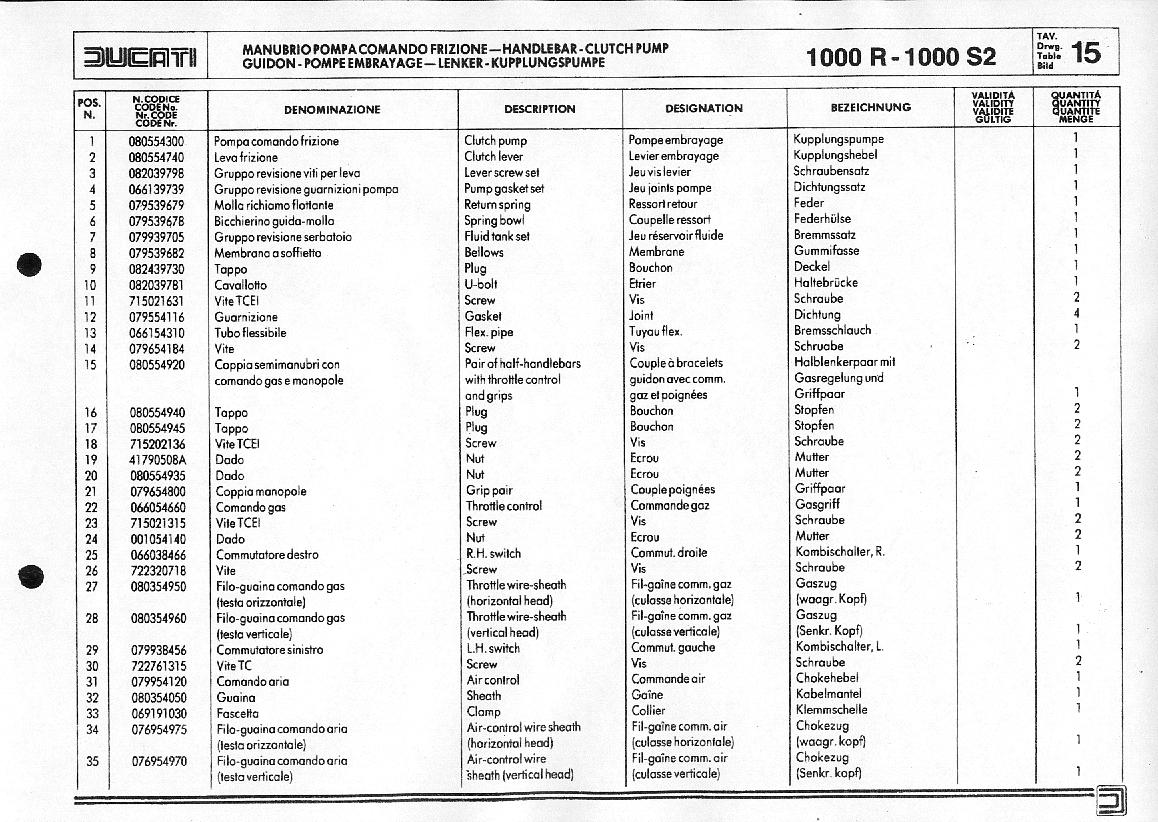

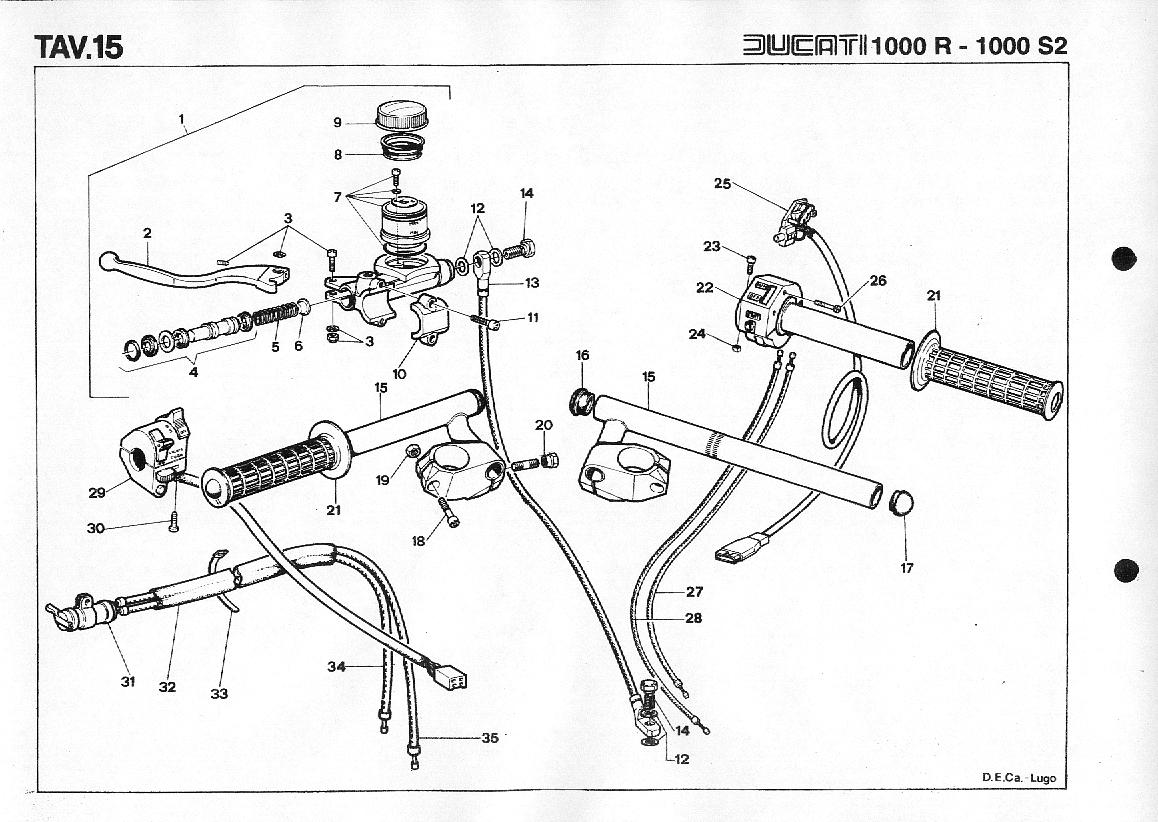

Handlebars	Handlebars and clutch pump	Part Numbers 1-35

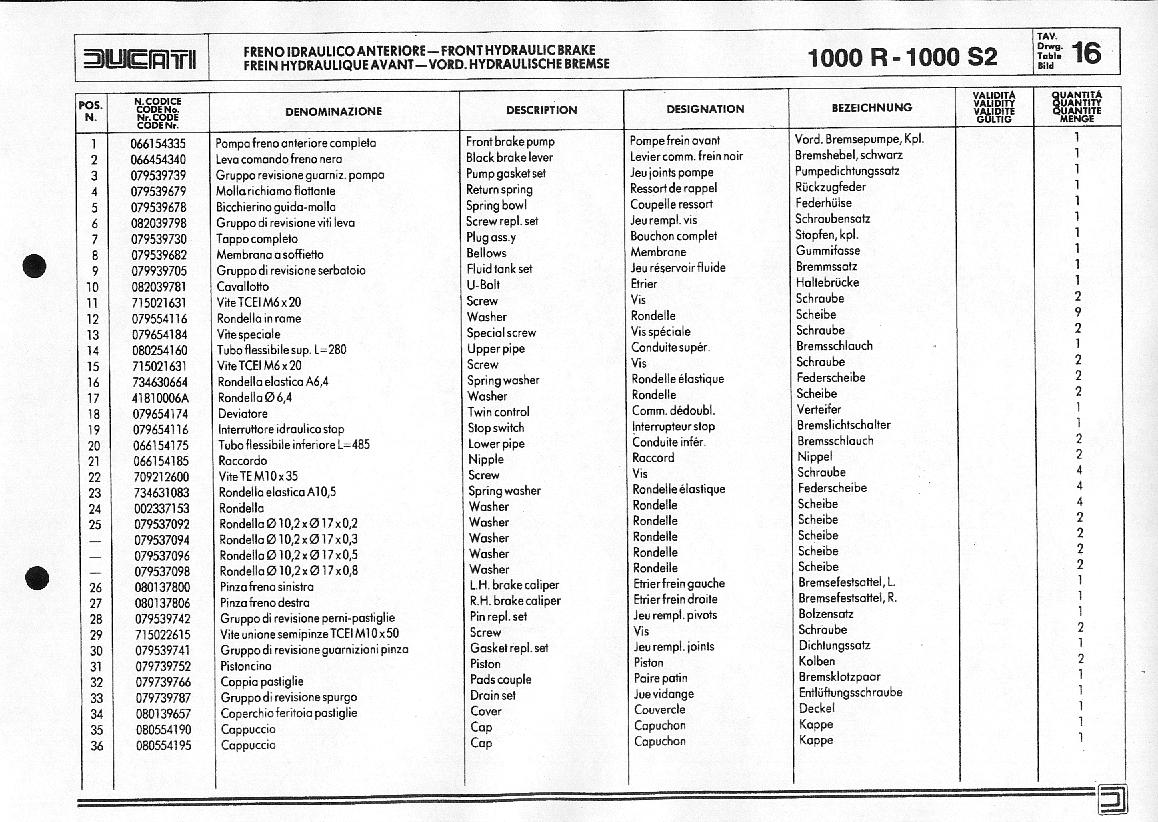

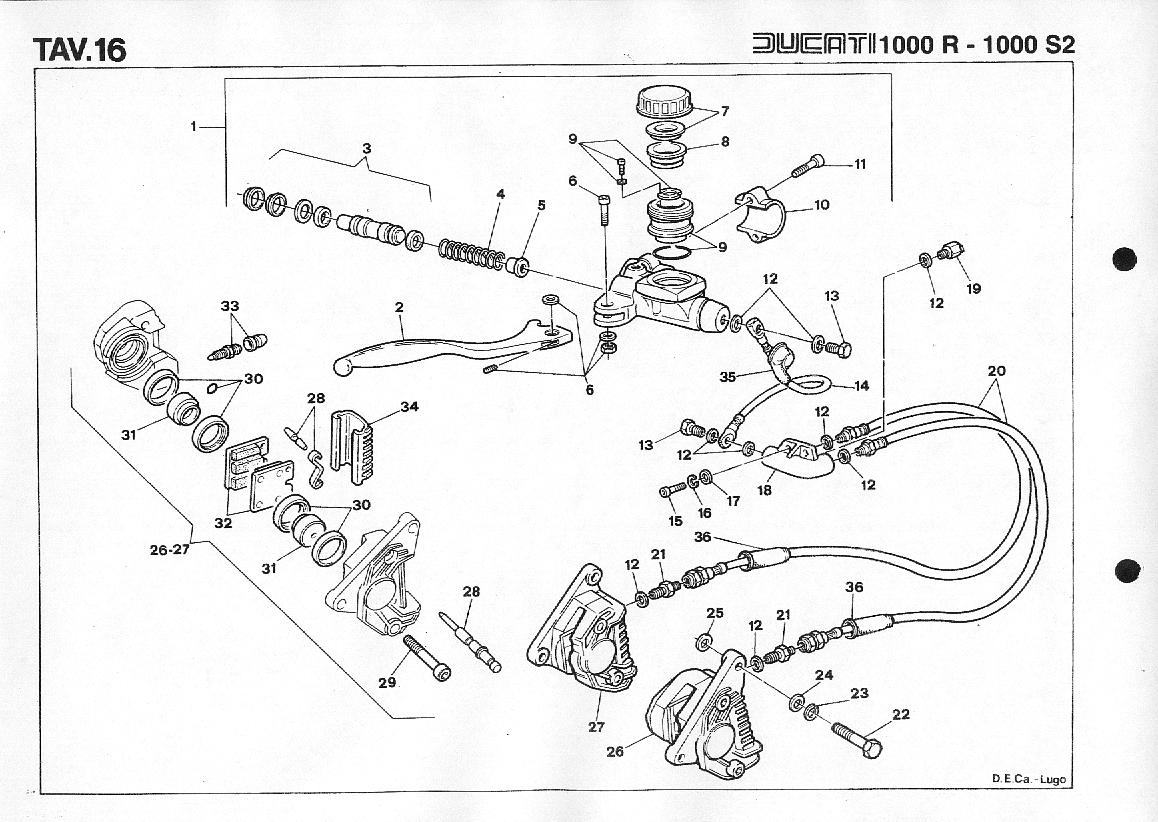

	Front hydraulic brake	Part Numbers 1-36

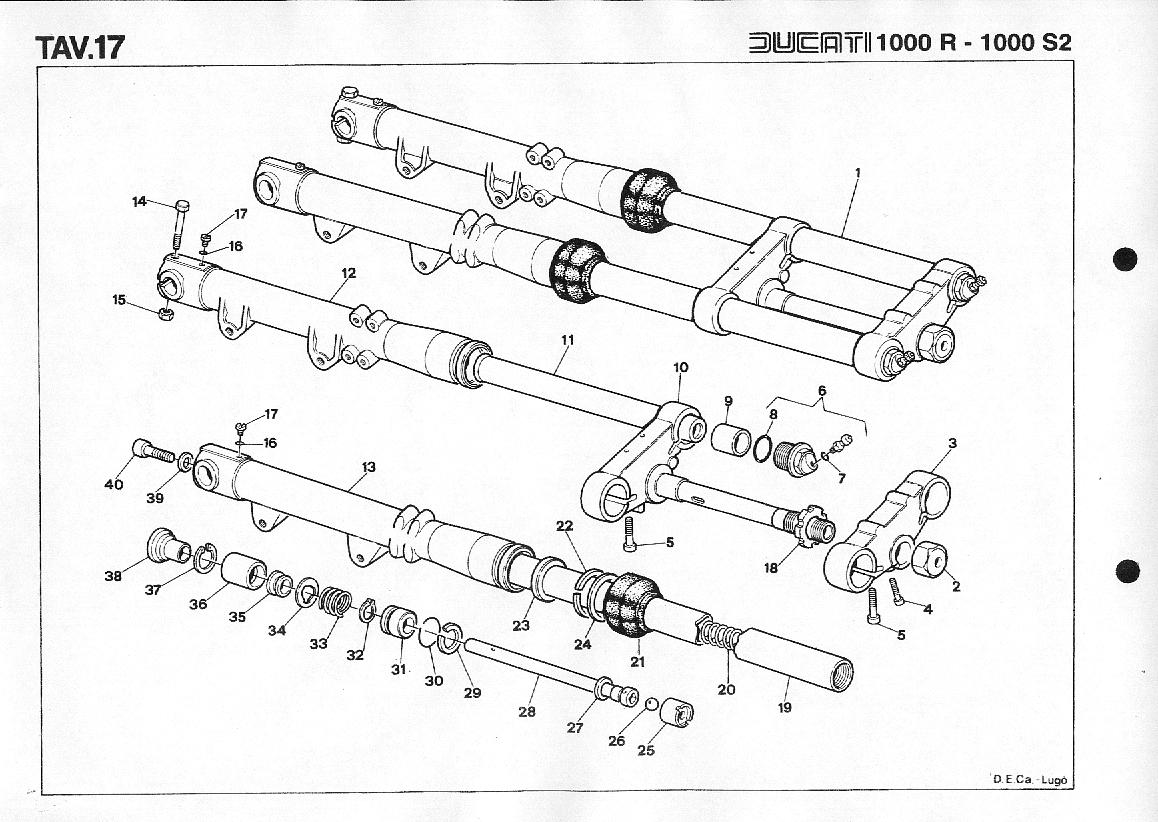

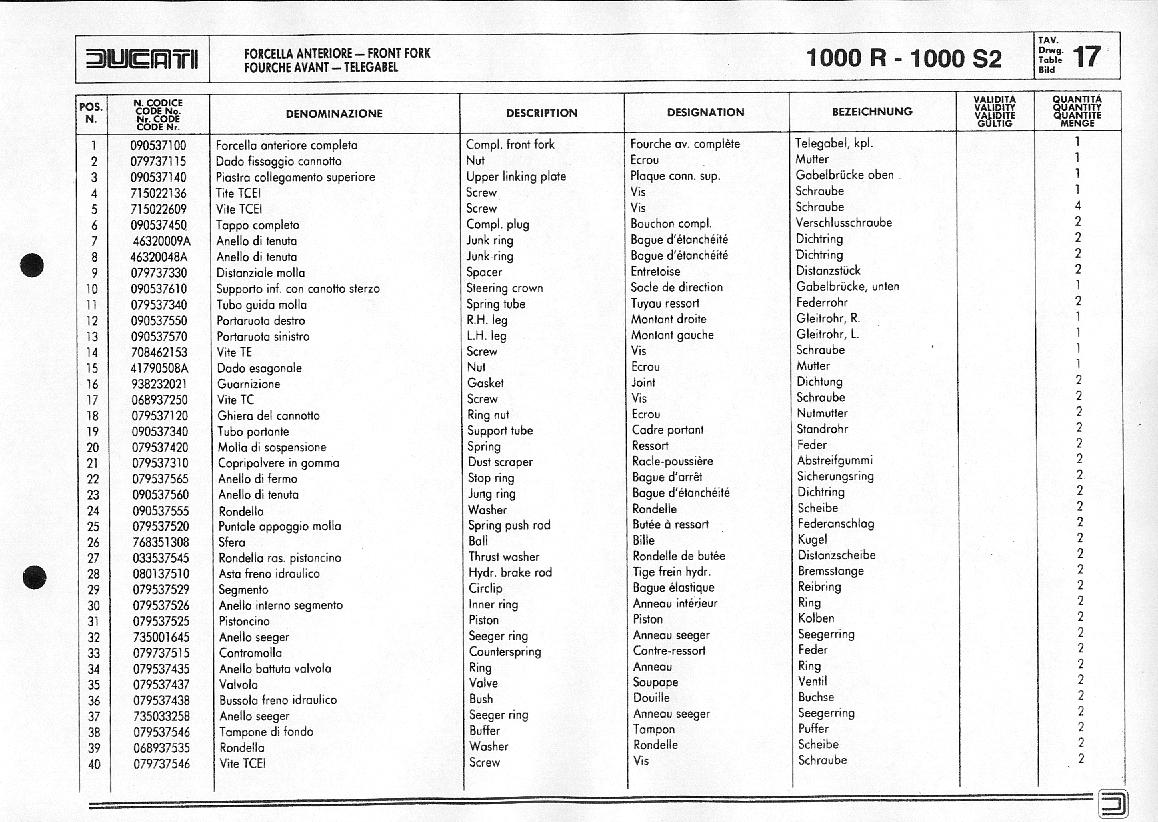

Suspension	Front forks	Part Numbers 1-40

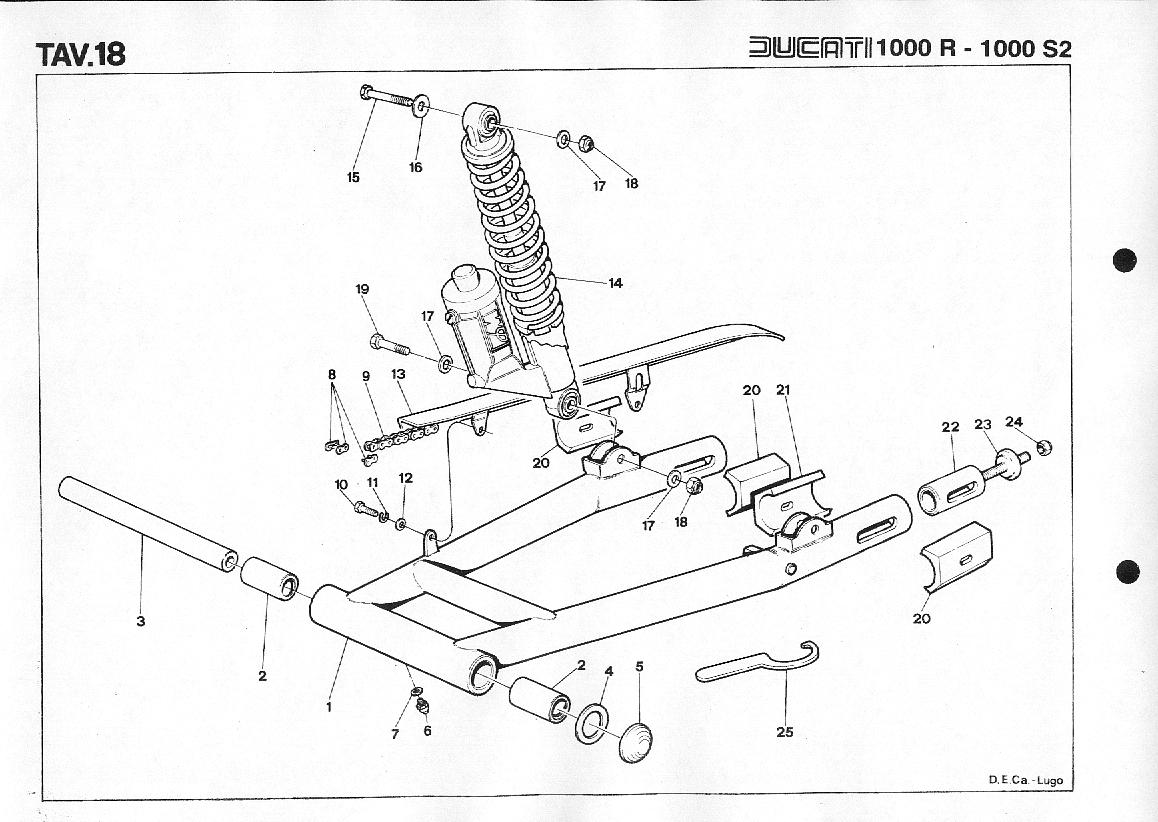

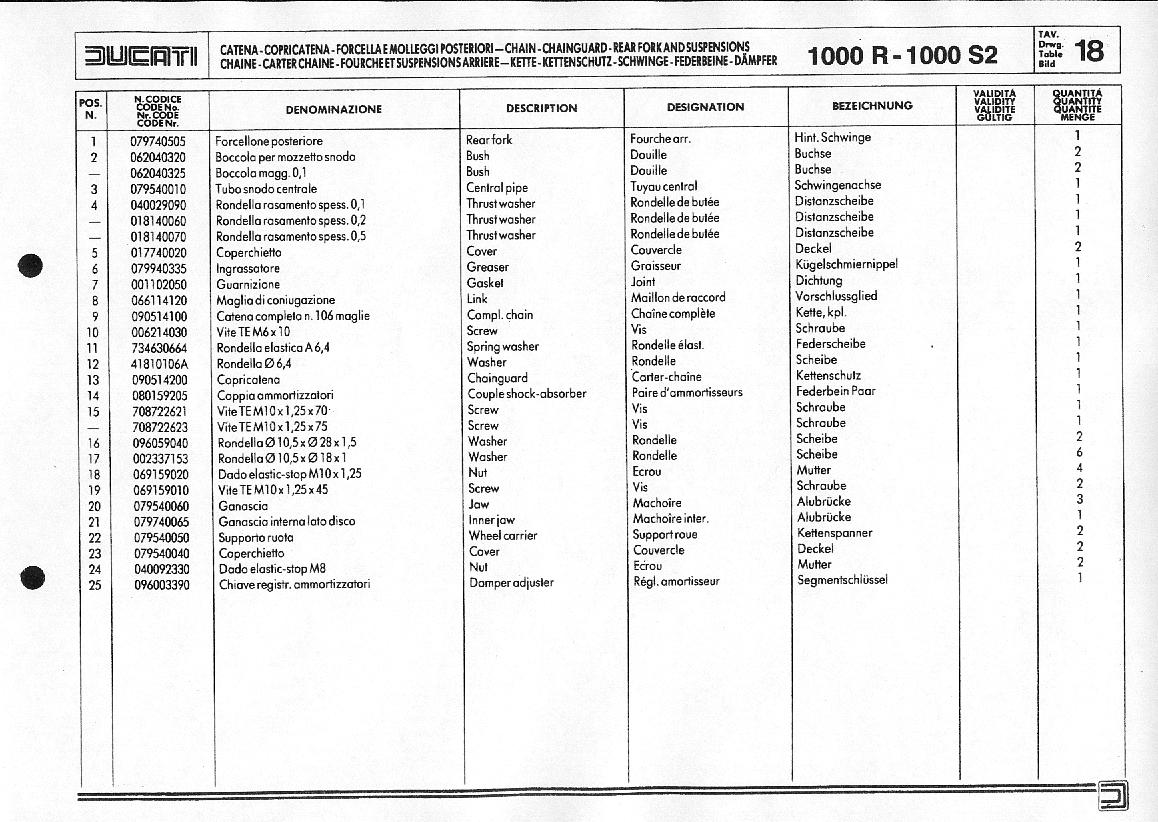

	Swing arm and shocks	Part Numbers 1-25

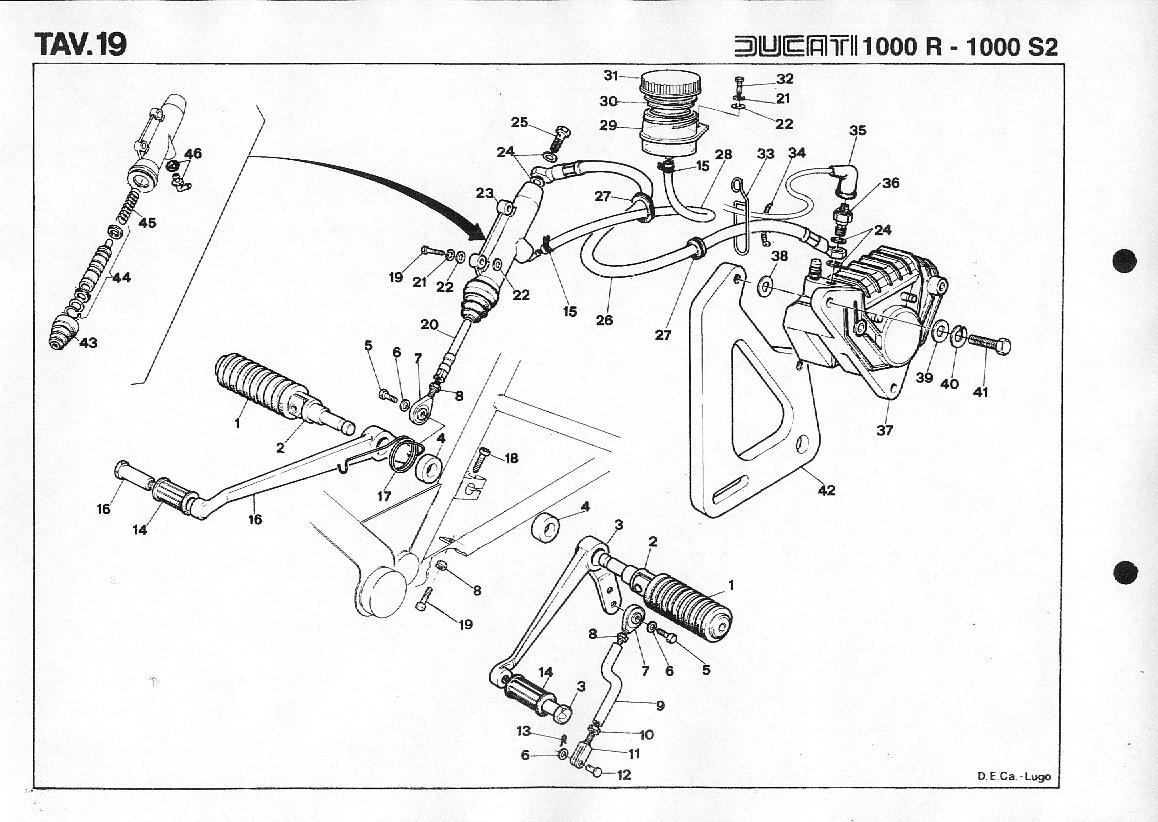

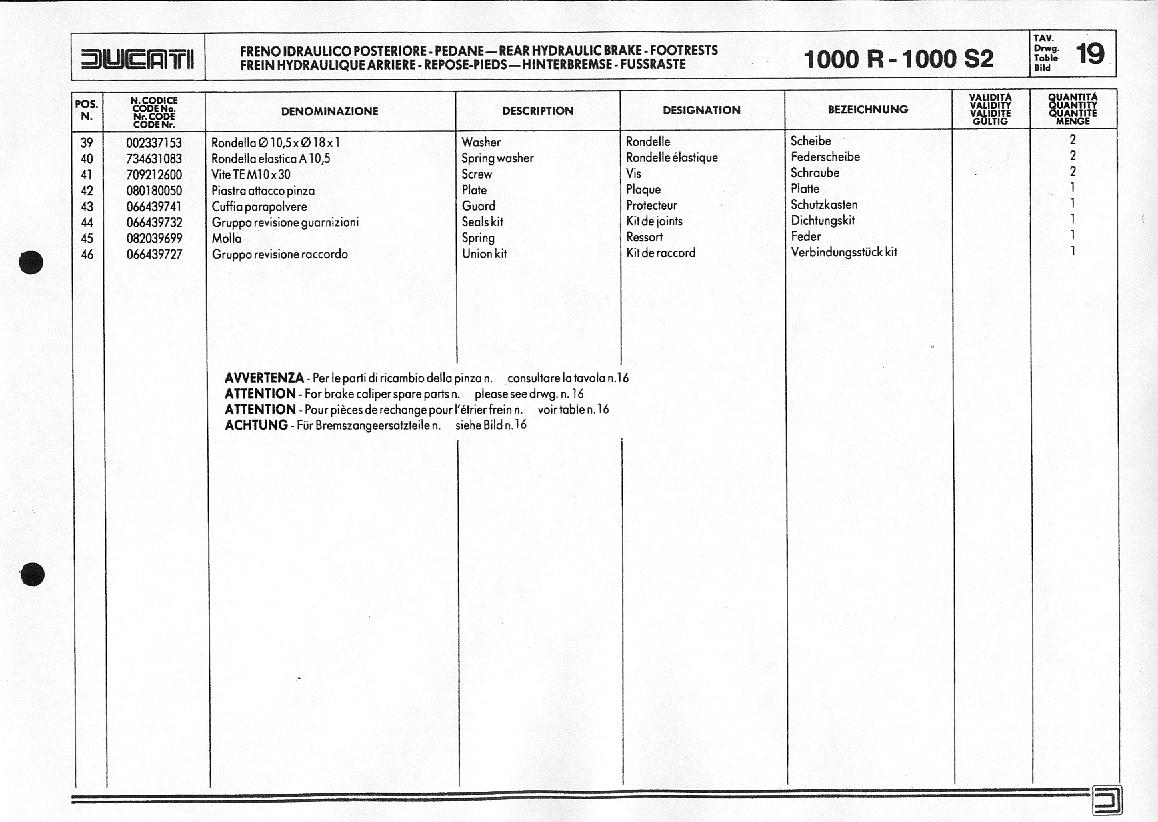

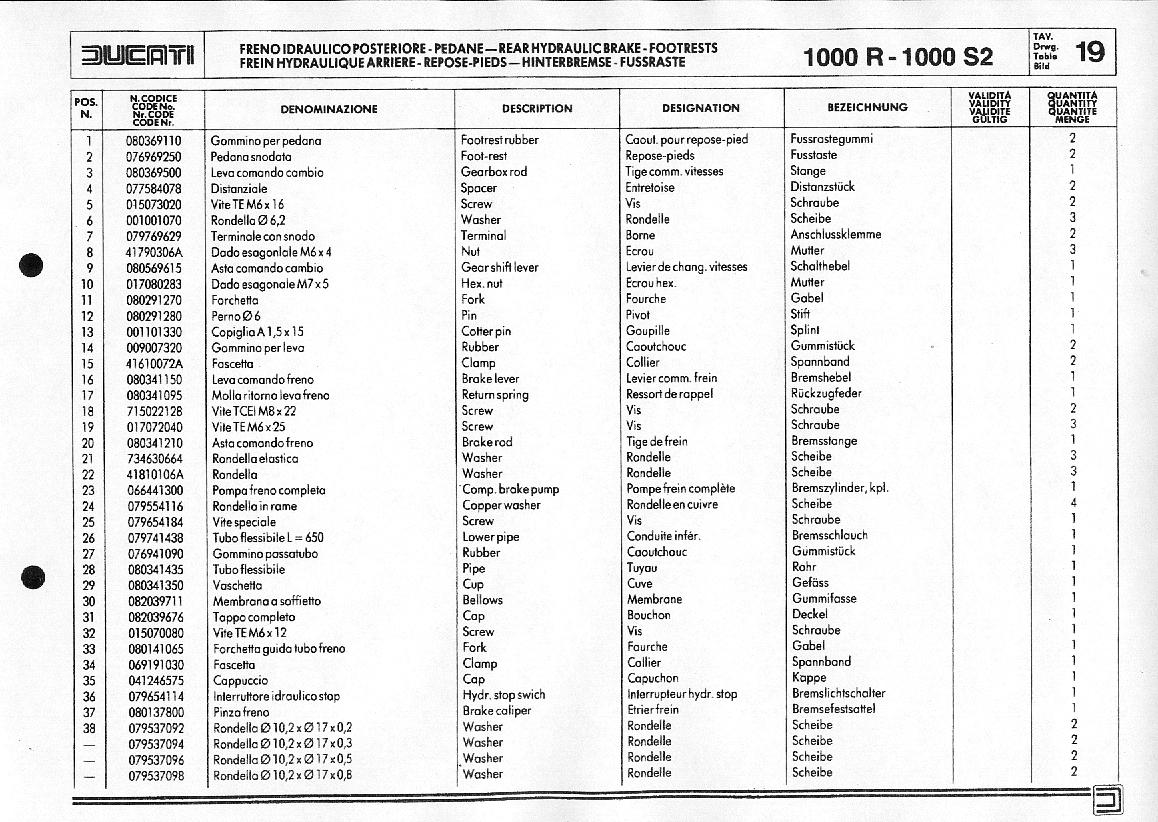

Rear Brake & Foot Controls	Rear hydraulic brake	Part Numbers 1-38 Part Numbers 39-46

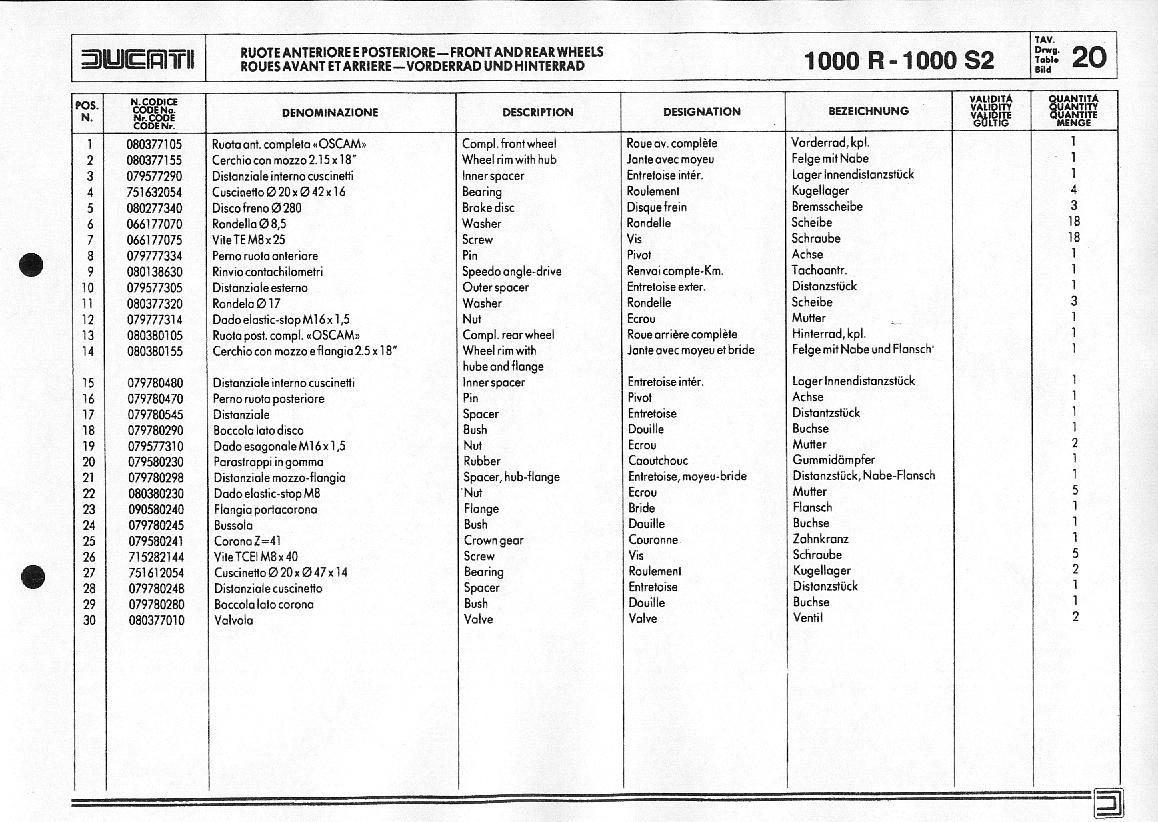

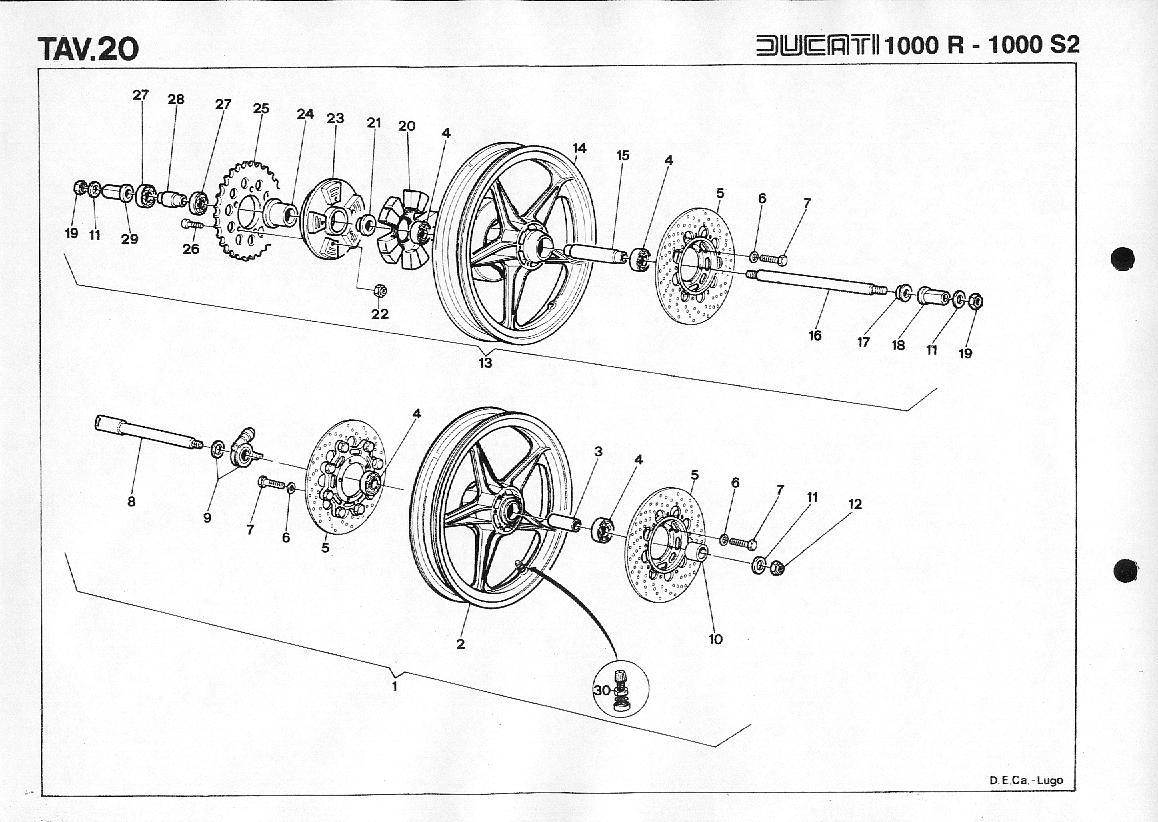

Wheels	Front & Rear Wheels	Part Numbers 1-30

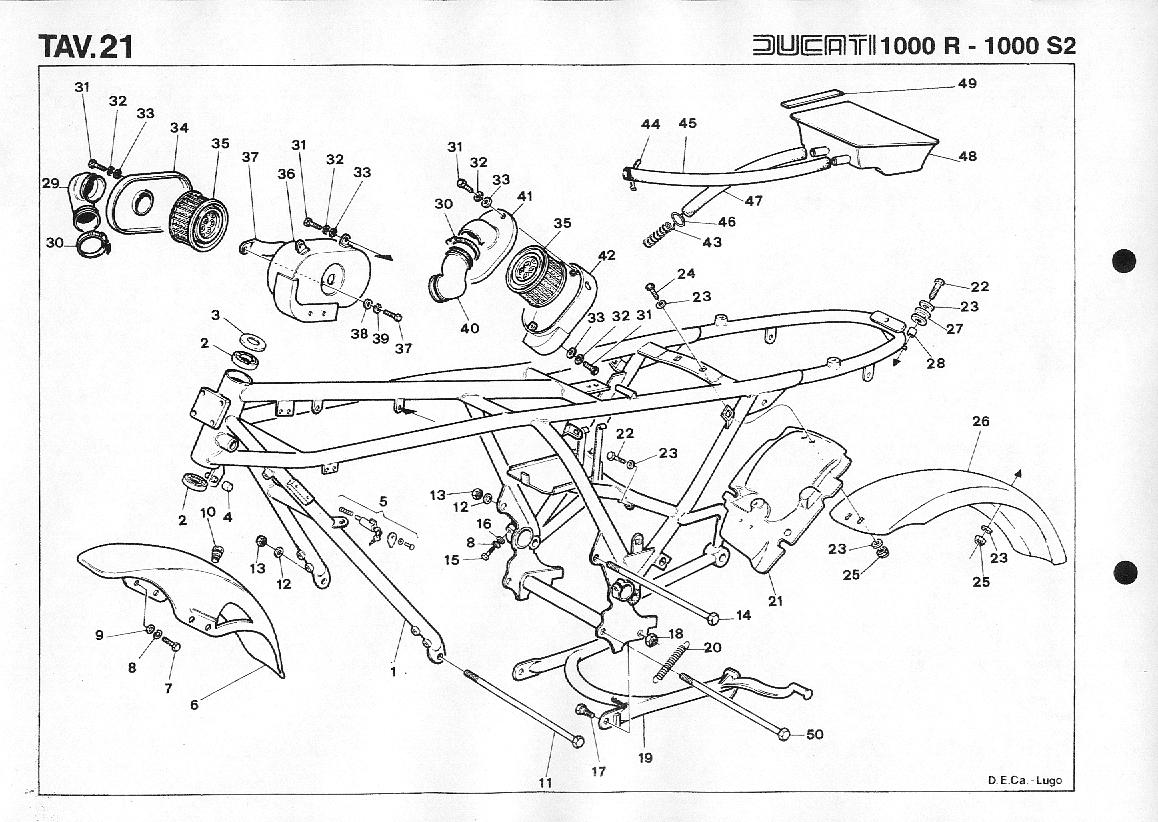

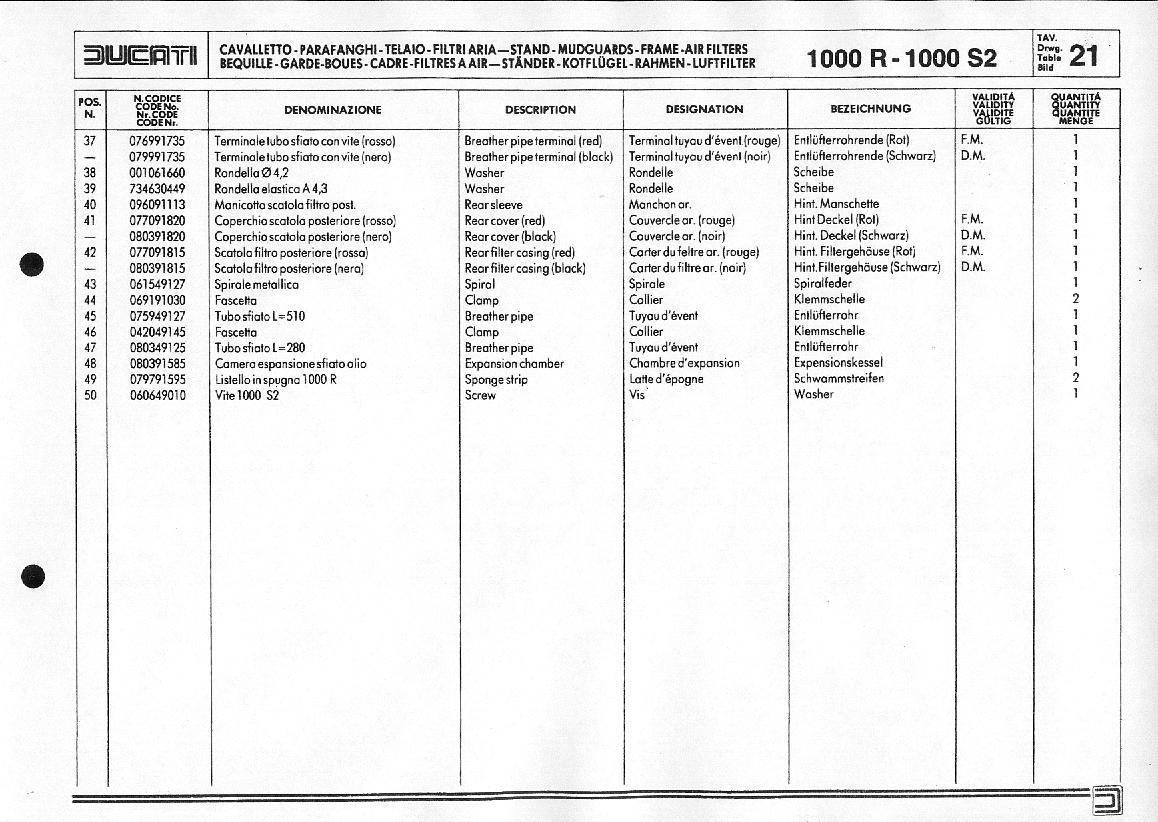

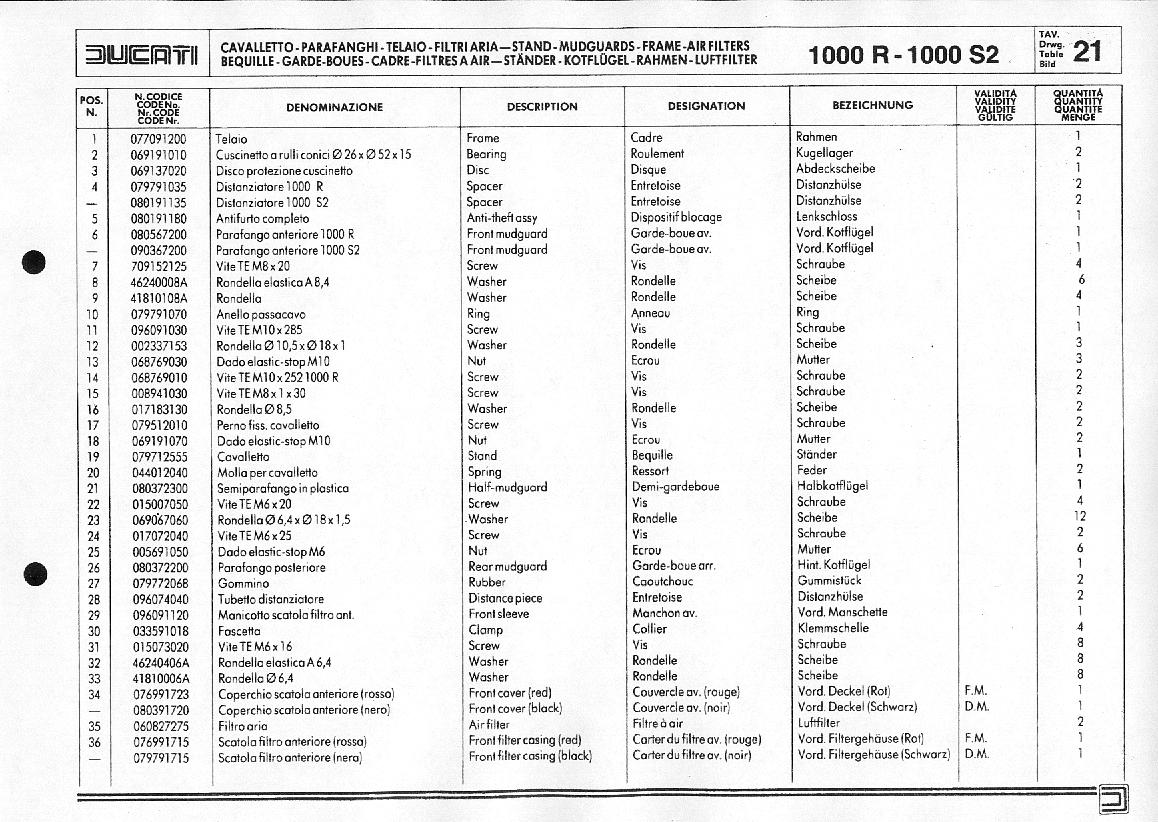

Frame	Frame, mudguards, air filters, stand	Part Numbers 1-36 Part Numbers 37-50

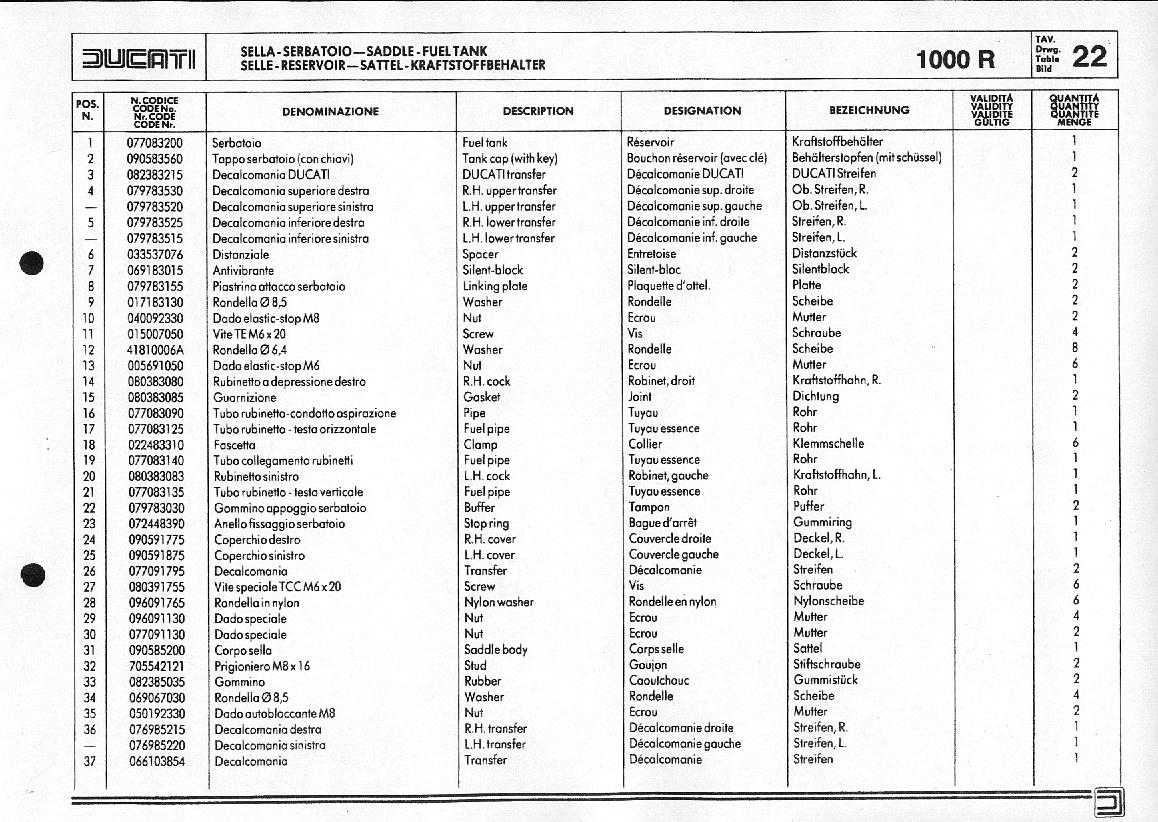

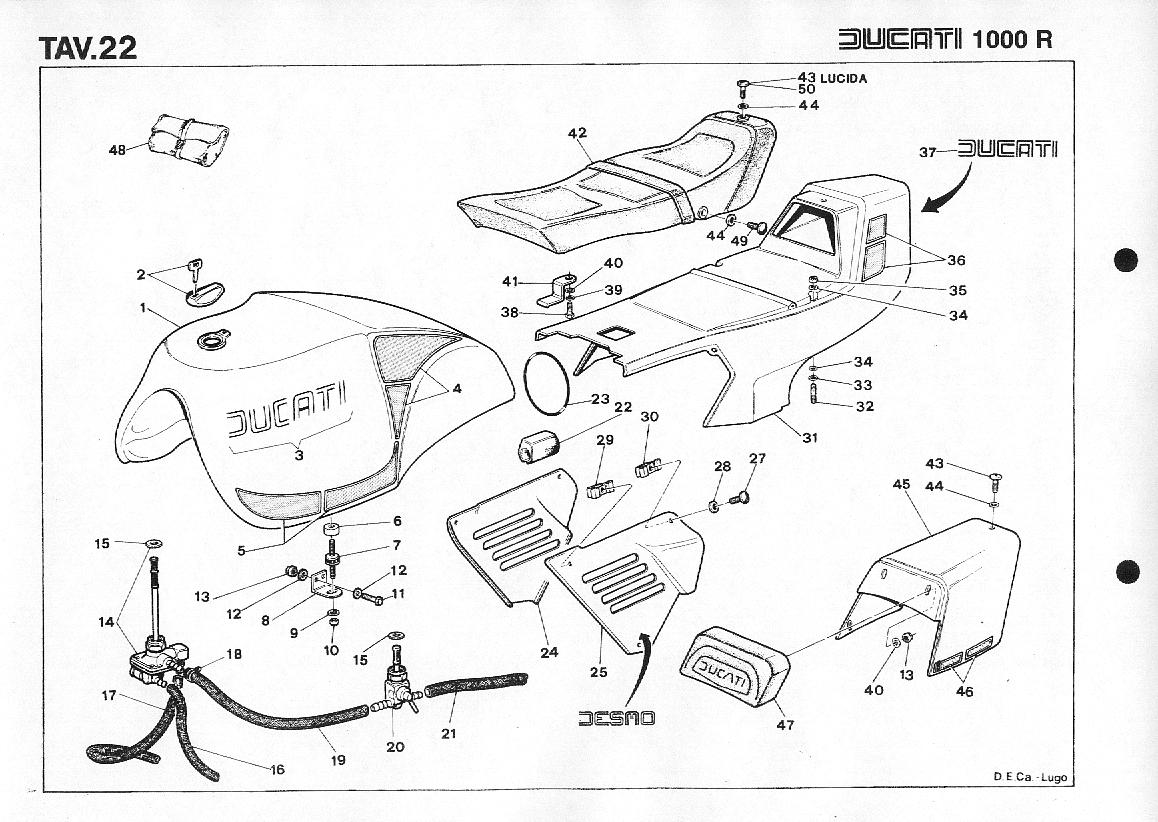

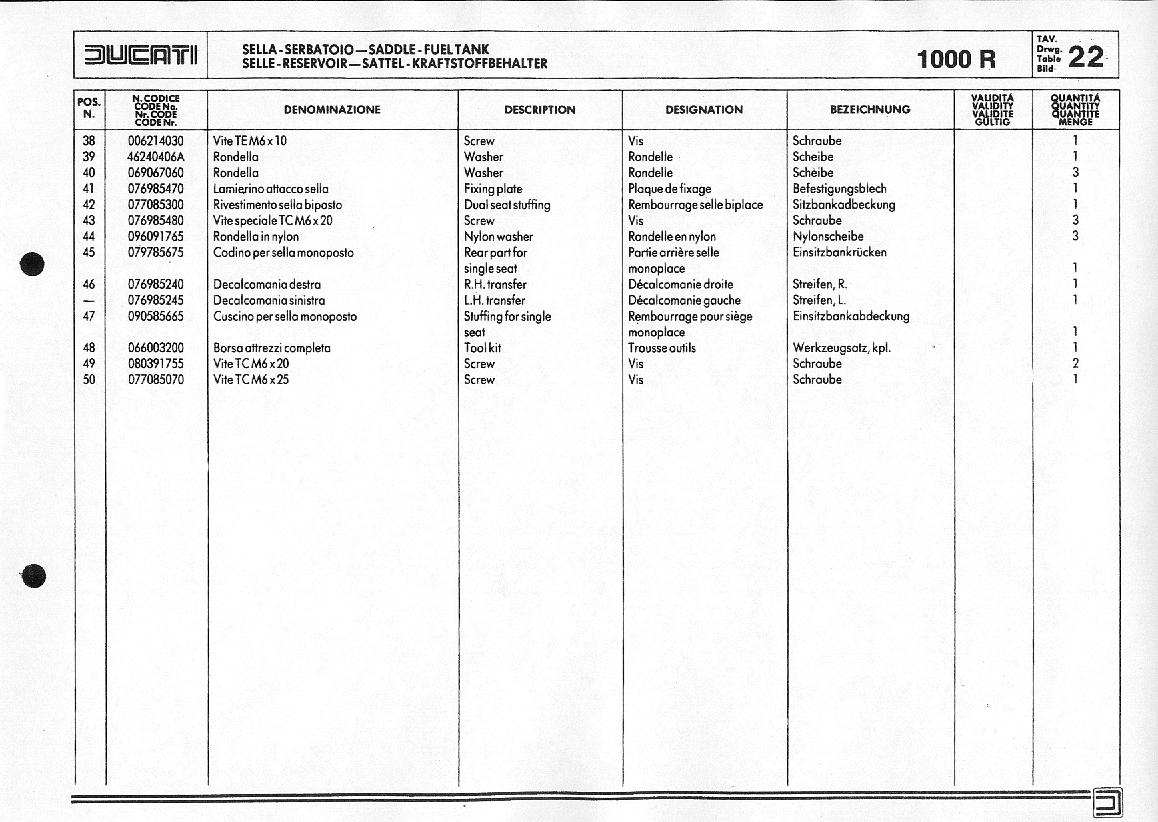

Seat - Tank	Mike Hailwood Replica	Part Numbers 1-36 Part Numbers 37-50

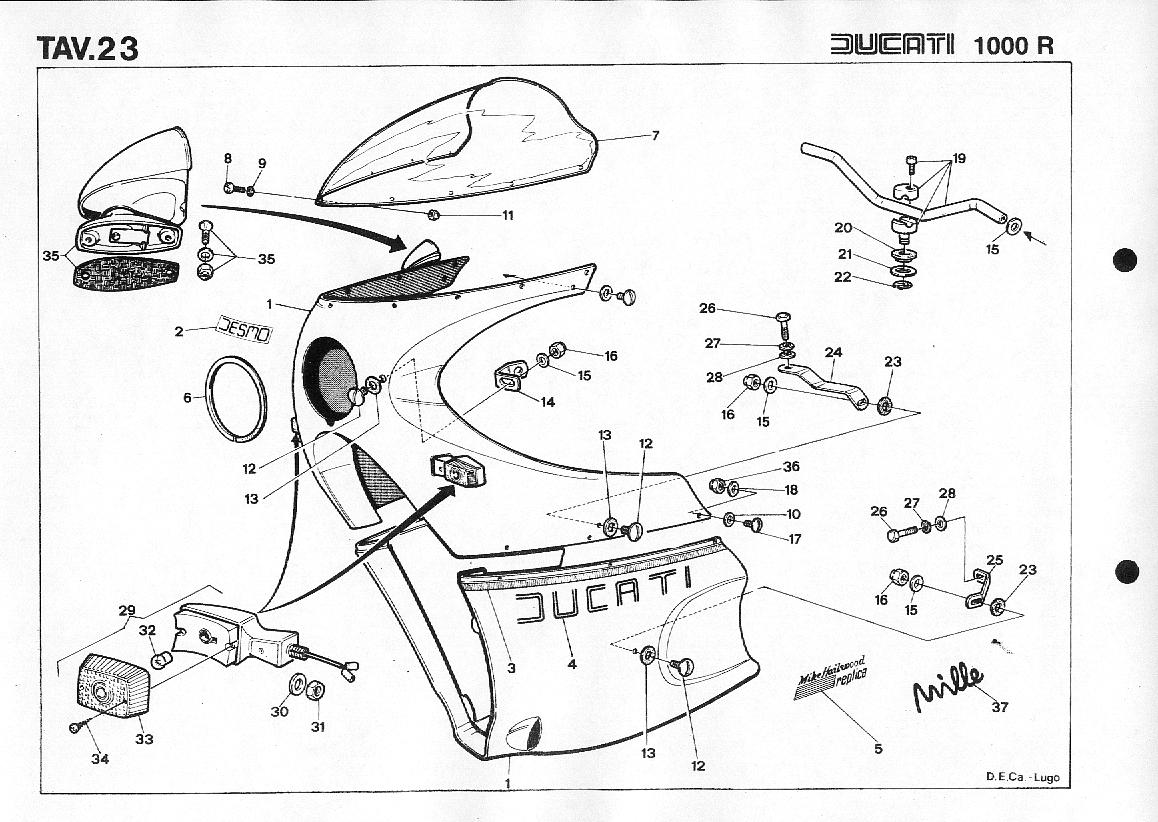

Fairing	Mike Hailwood Replica	Part Numbers 1-37

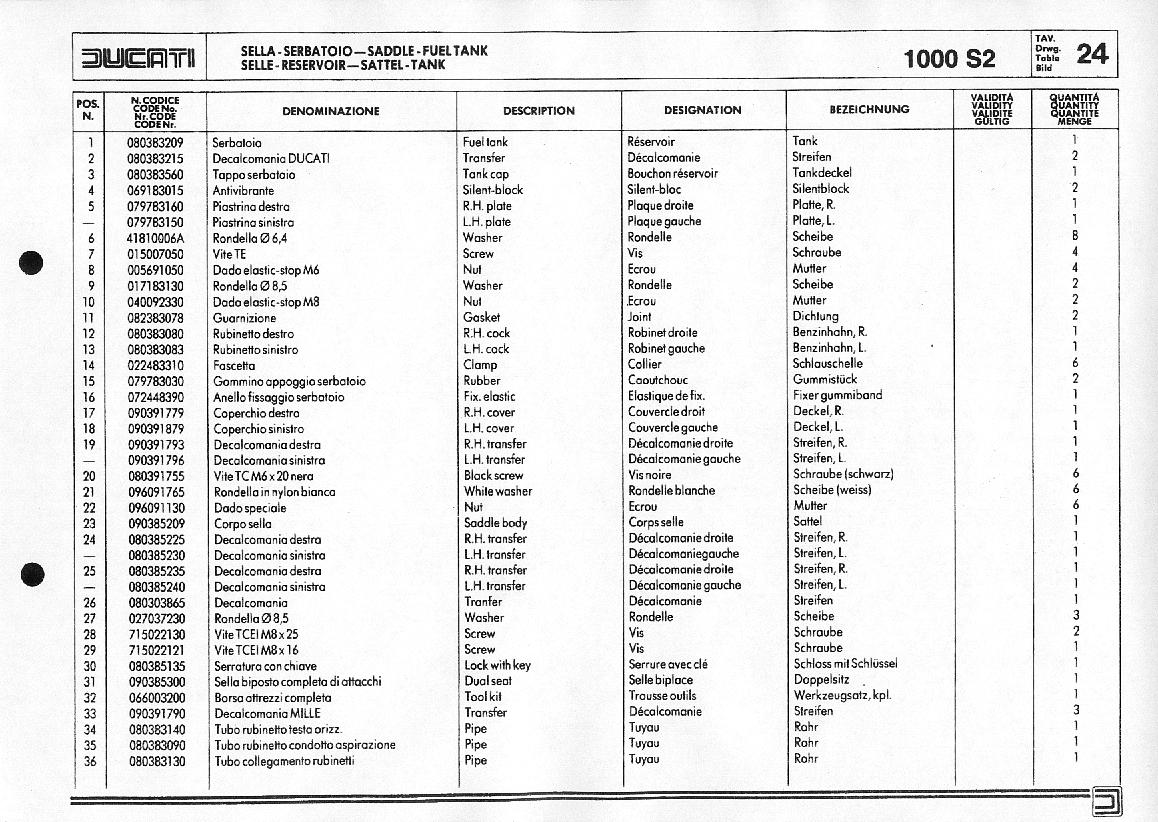

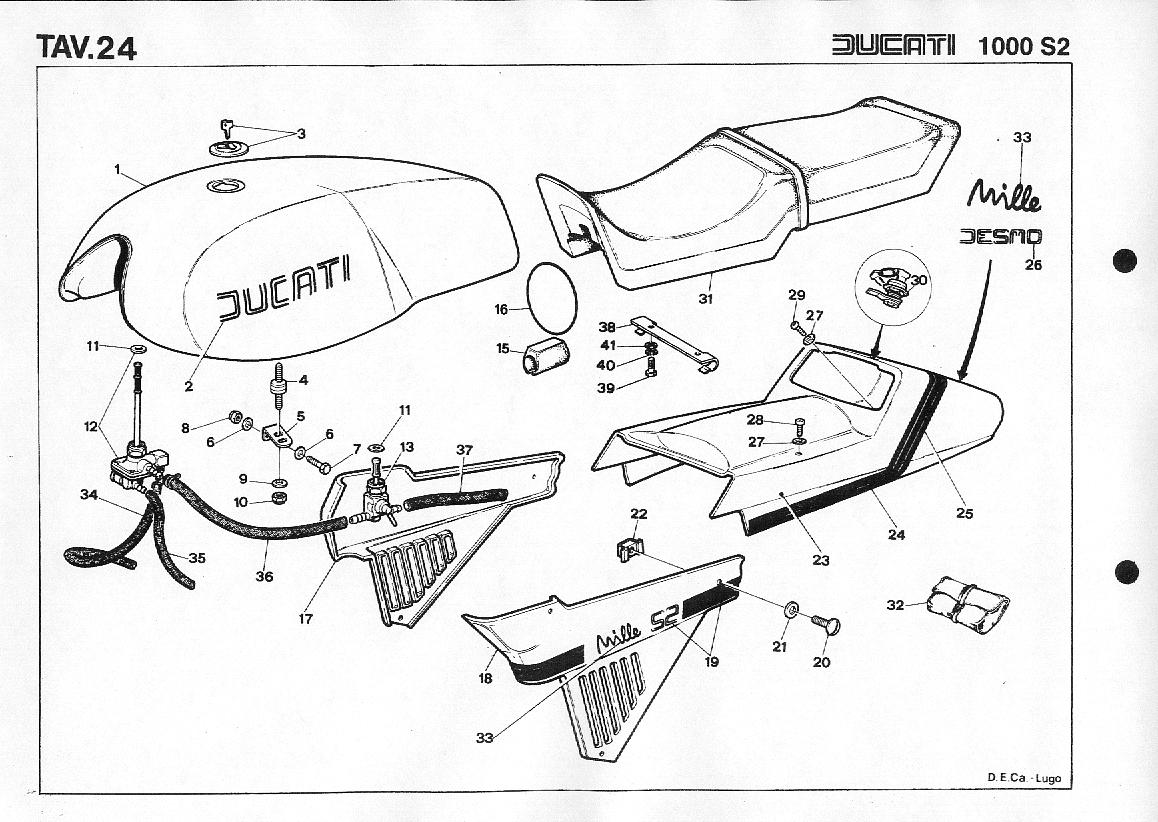

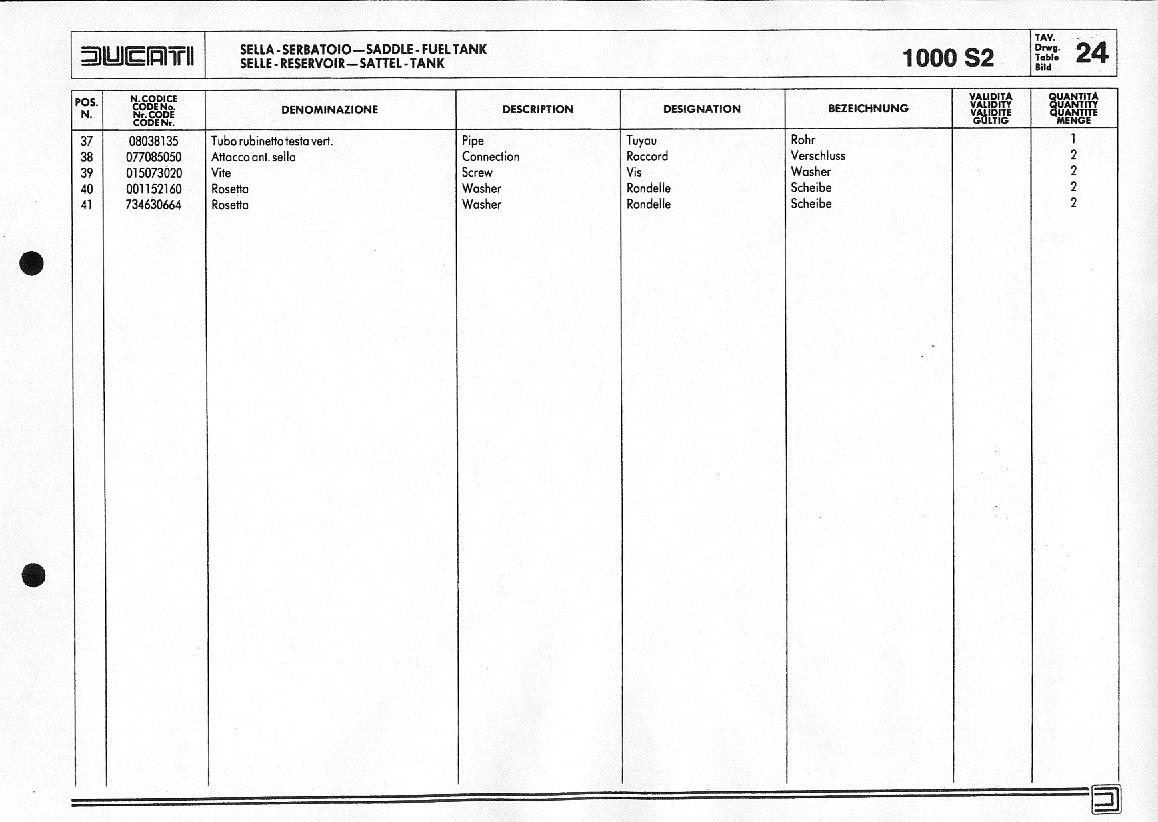

Seat - Tank	S2	Part Numbers 1-36 Part Numbers 37-41

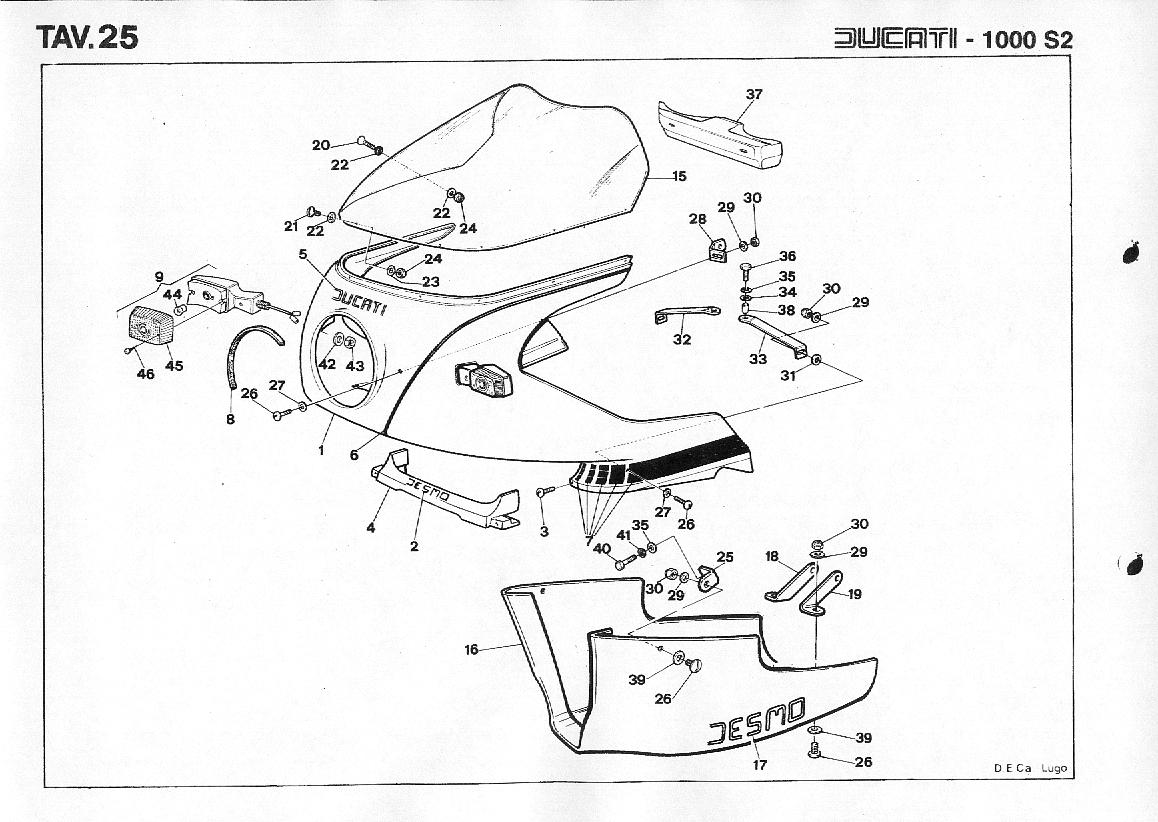

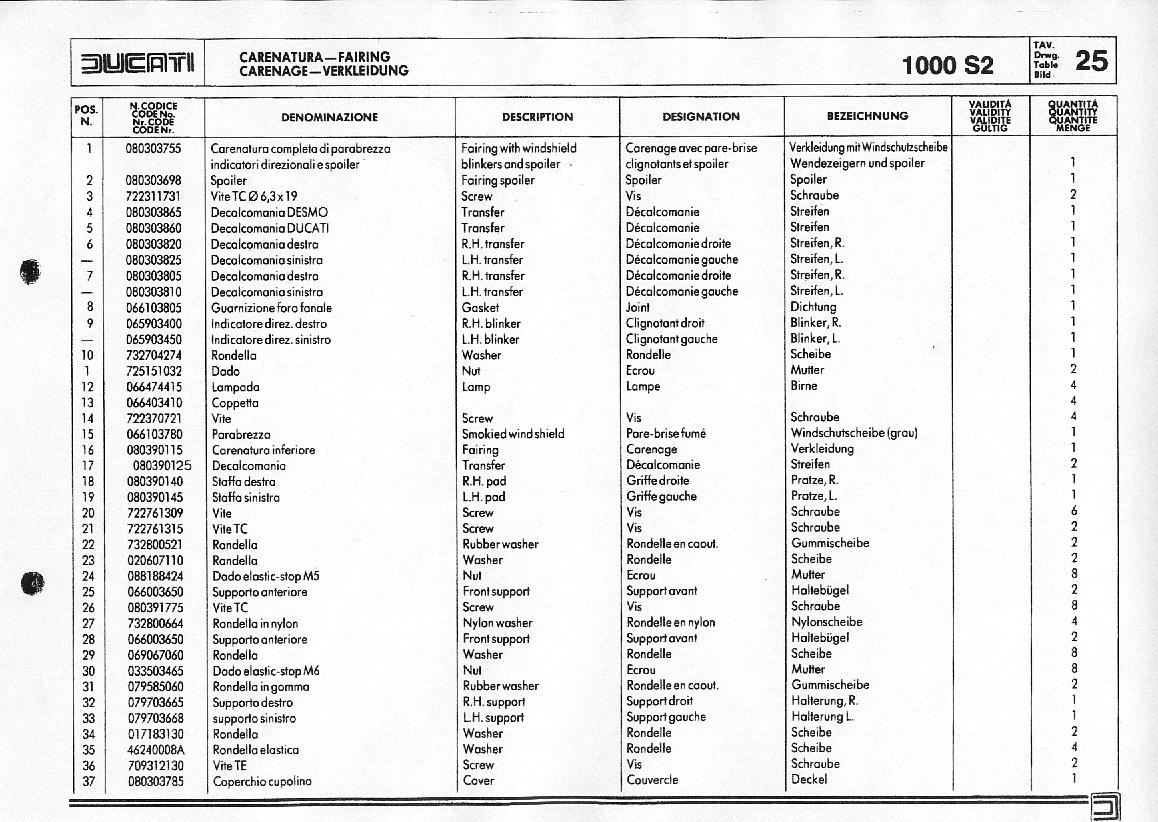

Fairing	S2	Part Numbers 1-37

Special Factory Tools	Tools	Part Numbers
