Removing the alternator rotor

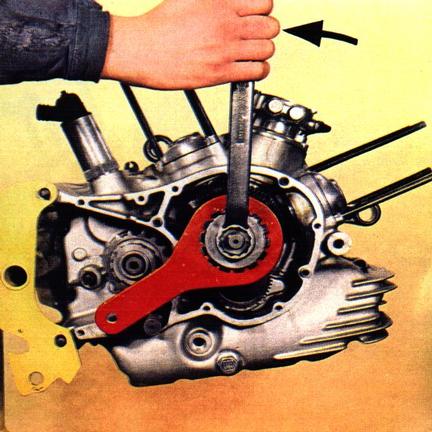

Insert tool # 88713.0108 in the alternator rotor poles and position it against the starter shaft. Open the lock washer, unscrew the nut with a 30 mm wrench and remove the rotor. Then remove the distance piece and the driving gear. Pay special attention to the shims that must be fitted together with the conical gear.


Figure 16
